NSN 5307-00-882-8389
Part Details | SELF-LOCKING STUD
5307-00-882-8389 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Alternate Parts: 702662194, 70-266219-4, 42580211, 425802-11, CFHS6328, CFHS632-8, CFHC6328, CFHC-632-8, 5307-00-882-8389, 00-882-8389, 5307008828389, 008828389
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 17, 1967 | 00-882-8389 | 27783 ( STUD, SELF-LOCKING ) |
REFERENCE DRAWINGS & PICTURES

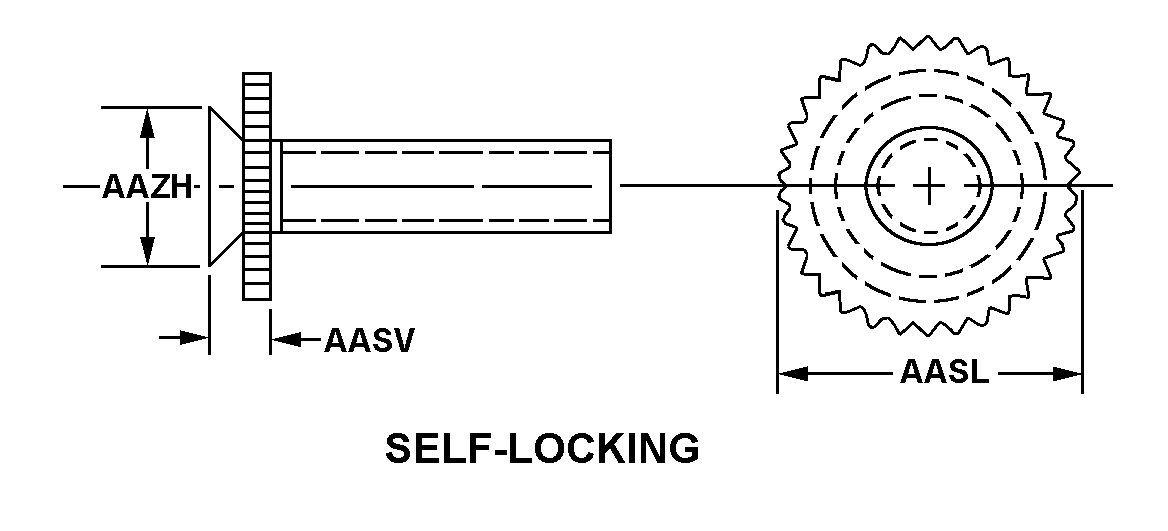

SELF-LOCKING
Cross Reference | NSN 5307-00-882-8389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70-266219-4 | 04655 | GENERAL DYNAMICS MISSION SYSTEMS,INC. |
| 425802-11 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| CFHS632-8 | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
| CFHC-632-8 | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
Technical Data | NSN 5307-00-882-8389
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| STYLE DESIGNATOR | SELF-LOCKING |
| HEAD DIAMETER | 0.250 INCHES NOMINAL |
| HEAD LENGTH | 0.070 INCHES NOMINAL |
| HEAD MINOR DIAMETER | 0.212 INCHES MAXIMUM |
| OVERALL LENGTH | 0.570 INCHES NOMINAL |
| LOCKING FEATURE | SELF-CLINCHING HEAD |
