NSN 5310-00-018-4496
Part Details | BARREL PLAIN NUT
5310-00-018-4496 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. Excludes NUT (1), PLAIN, ROUND.
Alternate Parts: 554785, 554785, 554785, 554785, 5310-00-018-4496, 00-018-4496, 5310000184496, 000184496
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-018-4496 | 21926 ( NUT, PLAIN, BARREL ) |
REFERENCE DRAWINGS & PICTURES

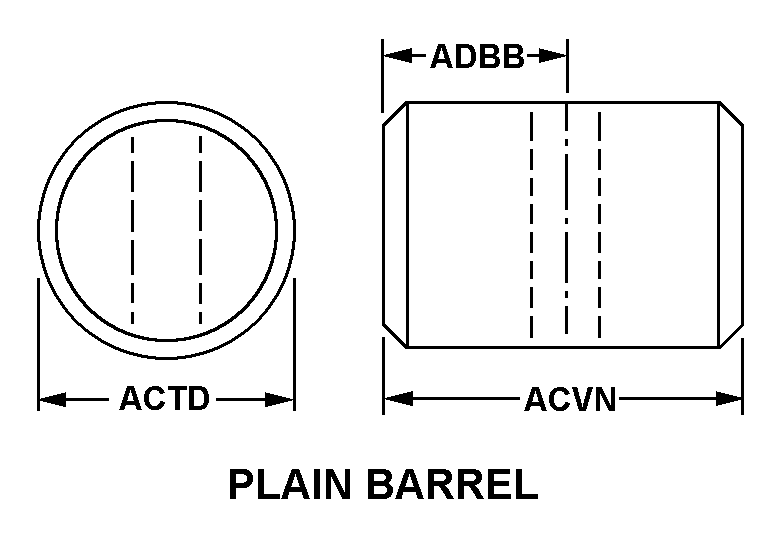

PLAIN BARREL
Cross Reference | NSN 5310-00-018-4496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 554785 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 554785 | 66861 | HARTFORD AIRCRAFT PRODUCTS, INC |
| 554785 | 2T575 | PARAMOUNT MACHINE COMPANY, INC. |
| 554785 | 45950 | PEERLESS SCREW PRODUCTS CORPORATION |
Technical Data | NSN 5310-00-018-4496
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | LEFT-HAND |
| NUT STYLE | PLAIN BARREL |
| NUT DIAMETER | 0.614 INCHES NOMINAL |
| NUT LENGTH | 0.879 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF THREADED HOLE TO END OF NUT | 0.350 INCHES NOMINAL |
