NSN 5310-00-040-4136
Part Details | DOUBLE HEXAGON SINGLE BALL SEAT SELF-LOCKING NUT
5310-00-040-4136 A nut having one convex, spherical bearing surface, with 12 drive points, 24 sides. Items may have a removable collar. An integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: ST3M5887, ST3M588-7, 66052N720, 5310-00-040-4136, 00-040-4136, 5310000404136, 000404136
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 13, 1972 | 00-040-4136 | 33115 ( NUT, SELF-LOCKING, SINGLE BALL SEAT, DOUBLE HEXAGON ) |
REFERENCE DRAWINGS & PICTURES

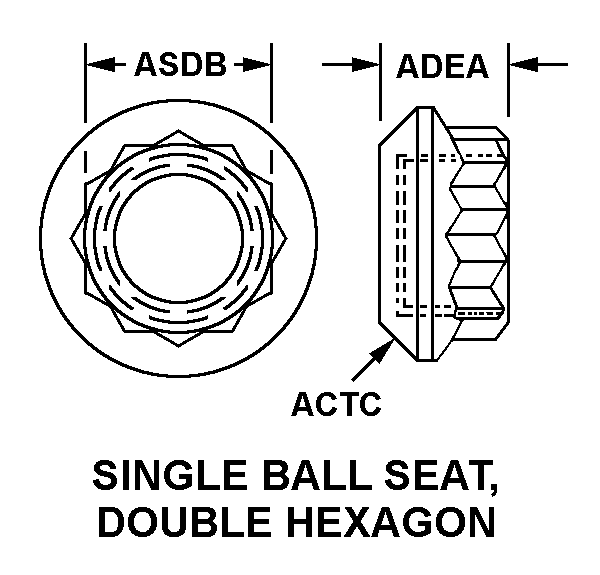

SINGLE BALL SEAT, DOUBLE HEXAGON
Cross Reference | NSN 5310-00-040-4136
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M588-7 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 66052N720 | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
Technical Data | NSN 5310-00-040-4136
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.437 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | SINGLE BALL SEAT, DOUBLE HEXAGON |
| NUT HEIGHT | 0.586 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.775 INCHES MINIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
