NSN 5310-00-064-8471
Part Details | INTERNAL WRENCHING PLAIN NUT
5310-00-064-8471 A cylindrical-shaped nut, the end opposite the bearing surface being designed with an internal socket or splines for use with an inserted wrench.
Alternate Parts: 43N17481660, 43N1748-1660, 5310-00-064-8471, 00-064-8471, 5310000648471, 000648471
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-064-8471 | 04893 ( NUT, PLAIN, INTERNAL WRENCHING ) |
REFERENCE DRAWINGS & PICTURES

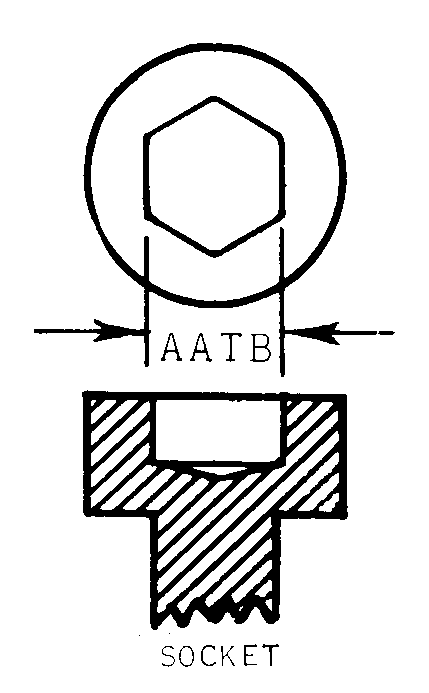

SOCKET
INTERNAL WRENCHING
Cross Reference | NSN 5310-00-064-8471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 43N1748-1660 | 94135 | NAVAL ORDNANCE STANDARDS |
Technical Data | NSN 5310-00-064-8471
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | INTERNAL WRENCHING |
| NUT DIAMETER | 0.302 INCHES NOMINAL |
| NUT HEIGHT | 0.312 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | SOCKET |
| SPECIAL FEATURES | NUT DESIGNED W/KNURLED SURFACE,0.337 IN.YDIA,ON PERIMETER OPPOSITE BEARING SURFACE,AND IS TO BE DRAWN OR PRESSED INTO HARDENED MATERIAL,0.327 IN. BORE DIA FOR ANCHORING |
