NSN 5310-00-076-6346
Part Details | LOCK WASHER
5310-00-076-6346 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Alternate Parts: 123HM102261, 123HM10226-1, 5310-00-076-6346, 00-076-6346, 5310000766346, 000766346
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-076-6346 | 14218 ( WASHER, LOCK ) |
REFERENCE DRAWINGS & PICTURES

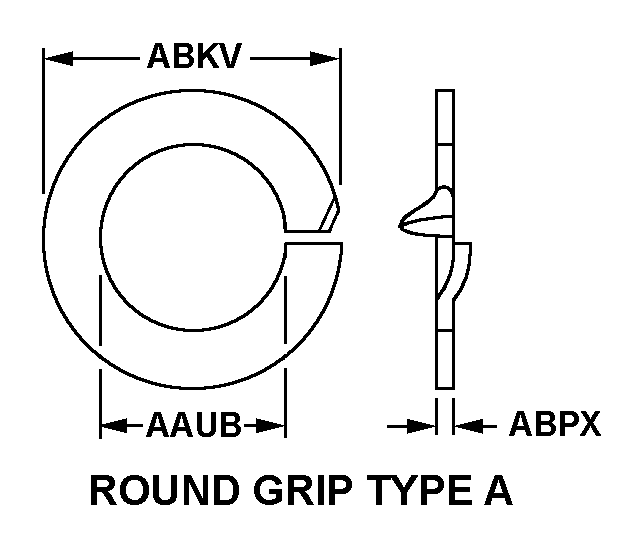

ROUND GRIP TYPE A
Cross Reference | NSN 5310-00-076-6346
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123HM10226-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5310-00-076-6346
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND GRIP TYPE A |
| HOLE DIAMETER | 0.126 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.130 INCHES NOMINAL |
