NSN 5310-00-078-0105
Part Details | PLATE SELF-LOCKING NUT
5310-00-078-0105 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: WSI33230, WSI332-30, BACN10GH330, BACN10GH3-30, BACN10GH330, BACN10GH3-30, BACN10GH330, BACN10GH3-30, 5310-00-078-0105, 00-078-0105, 5310000780105, 000780105
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 09, 1967 | 00-078-0105 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

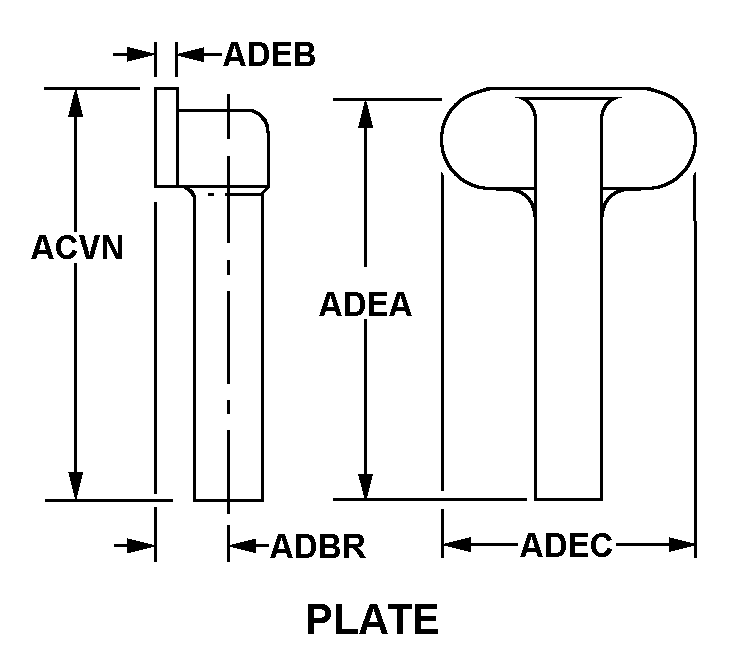

REFERENCE DRAWINGS & PICTURES
PLATE
Cross Reference | NSN 5310-00-078-0105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WSI332-30 | 04169 | ATLAS CORPWESTERN SKY INDUSTRIES DIV |
| BACN10GH3-30 | 6D154 | HARTWELL CORPORATION |
| BACN10GH3-30 | 60119 | MONADNOCK COMPANY, THEDBA LISI AEROSPACE |
| BACN10GH3-30 | 77272 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5310-00-078-0105
| Characteristic | Specifications |
|---|---|
| LOCKING FEATURE | PREVAILING TORQUE WITH METALLIC INSERT |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLATE |
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| NUT LENGTH | 3.460 INCHES MINIMUM AND 3.540 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.290 INCHES MINIMUM AND 0.330 INCHES MAXIMUM |
| NUT HEIGHT | 3.420 INCHES MINIMUM AND 3.460 INCHES MAXIMUM |
| PLATE THICKNESS | 0.040 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
| PLATE WIDTH | 1.460 INCHES MINIMUM AND 1.570 INCHES MAXIMUM |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.000 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 81205-BACN10GH MANUFACTURERS STANDARD |
