NSN 5310-00-078-5385
Part Details | KEY WASHER
5310-00-078-5385 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: 100641, 5310-00-078-5385, 00-078-5385, 5310000785385, 000785385
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-078-5385 | 01869 ( WASHER, KEY ) |
REFERENCE DRAWINGS & PICTURES

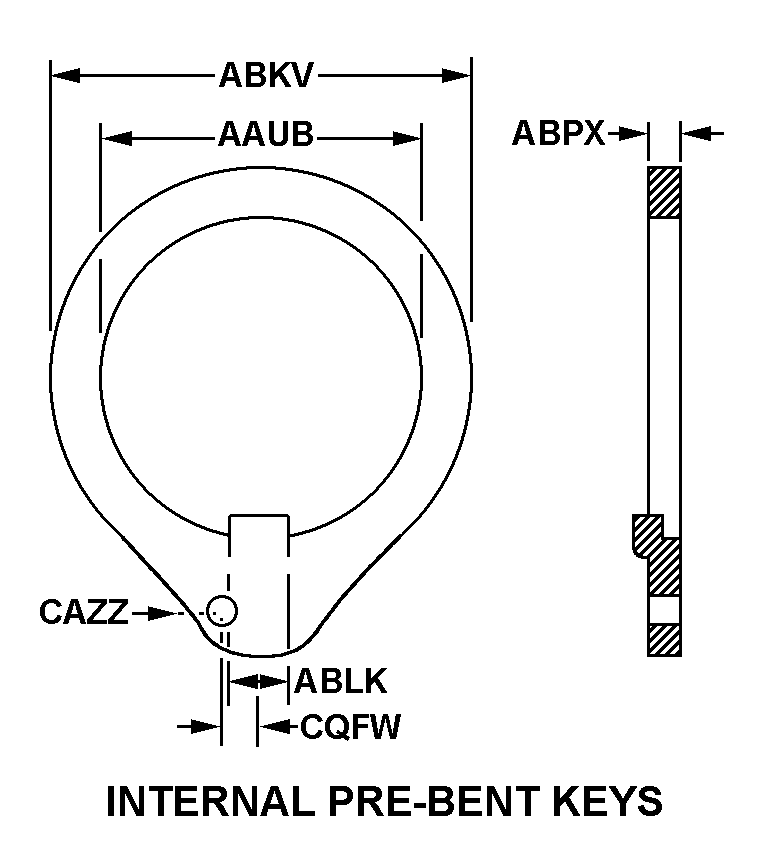

INTERNAL PREBENT KEY
Cross Reference | NSN 5310-00-078-5385
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100641 | 81873 | WOODWARD HRT, INC. |
Technical Data | NSN 5310-00-078-5385
| Characteristic | Specifications |
|---|---|
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | INTERNAL PREBENT KEY |
| HOLE DIAMETER | 0.940 INCHES MINIMUM AND 0.950 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.310 INCHES MINIMUM AND 1.330 INCHES MAXIMUM |
| INTERNAL PREBENT KEY WIDTH | 0.142 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.080 INCHES NOMINAL |
| DISTANCE FROM KEY CENTER TO WIRE HOLE CENTER | 0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| WIRE HOLE DIAMETER | 0.080 INCHES NOMINAL |
