NSN 5310-00-084-9335
Part Details | PLATE SELF-LOCKING NUT
5310-00-084-9335 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: RM52LHA71802, RM52LHA71-8-02, T8059S1032B3, T8059S1032B-3, BACN10MK385, BACN10MK3-85, BACN10MK385, BACN10MK3-85, BACN10MK385, BACN10MK3-85, T8059S1032B3, T8059S1032-B3, BACN10MK385, BACN10MK3-85, BACN10MK385, BACN10MK3-85, 5310-00-084-9335, 00-084-9335, 5310000849335, 000849335
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-084-9335 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

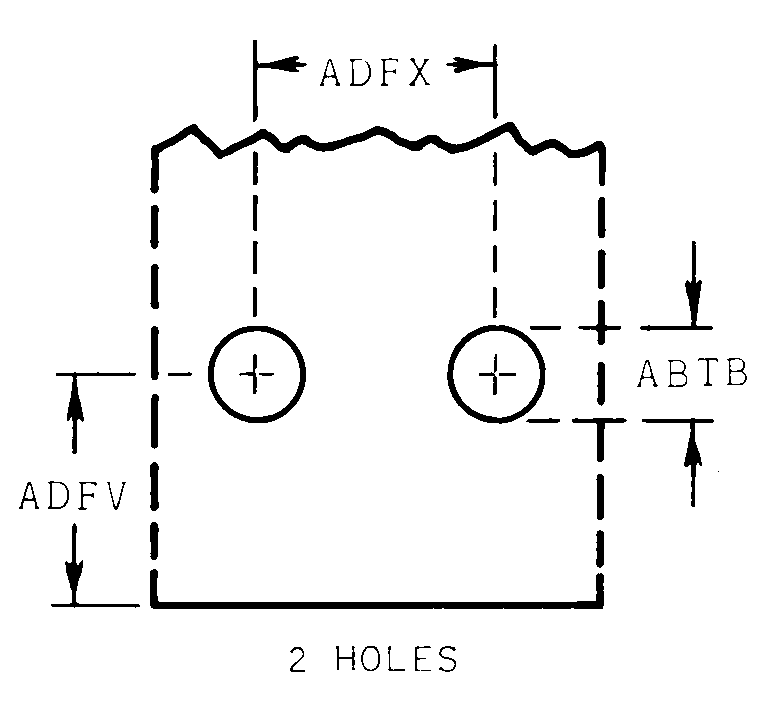

REFERENCE DRAWINGS & PICTURES
PLATE
2 HOLES
Cross Reference | NSN 5310-00-084-9335
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RM52LHA71-8-02 | 72962 | HARVARD INDUSTRIES INC |
| T8059S1032B-3 | 71087 | REPUBLIC FASTENER MFG. CORP. UseCAGE Code 52828 for Cataloging. |
| BACN10MK3-85 | 71087 | REPUBLIC FASTENER MFG. CORP. UseCAGE Code 52828 for Cataloging. |
| BACN10MK3-85 | 52828 | REPUBLIC FASTENER MFG. CORPDBA ARCONIC FASTENING SYSTEMS AND |
| BACN10MK3-85 | 80539 | SPS TECHNOLOGIES, LLCDBA AEROSPACE FASTENERS GROUP |
| T8059S1032-B3 | 11815 | SPS TECHNOLOGIES, LLCDBA CHERRY AEROSPACE DIV |
| BACN10MK3-85 | 81205 | THE BOEING COMPANYDBA BOEING |
| BACN10MK3-85 | 77272 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5310-00-084-9335
| Characteristic | Specifications |
|---|---|
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLATE |
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| NUT LENGTH | 1.130 INCHES NOMINAL |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.281 INCHES NOMINAL |
| NUT HEIGHT | 0.200 INCHES NOMINAL |
| PLATE THICKNESS | 0.032 INCHES MINIMUM AND 0.037 INCHES MAXIMUM |
| PLATE WIDTH | 1.038 INCHES NOMINAL |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING HOLE CENTER TO BASE | 0.850 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 0.560 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| SPECIFICATION/STANDARD DATA | 81205-BACN10K MANUFACTURERS STANDARD |
