NSN 5310-00-086-5471
Part Details | SHEET SPRING NUT
5310-00-086-5471 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: C881810Z4, C8818-10Z4, 5310-00-086-5471, 00-086-5471, 5310000865471, 000865471
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-086-5471 | 01865 ( NUT, SHEET SPRING ) |
REFERENCE DRAWINGS & PICTURES

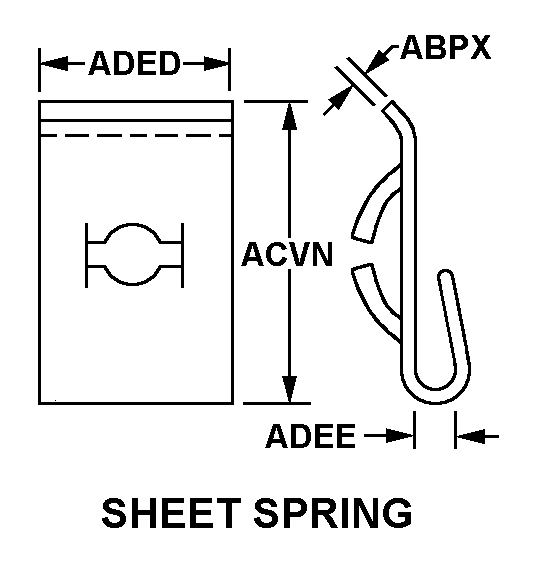

SHEET SPRING
Cross Reference | NSN 5310-00-086-5471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C8818-10Z4 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
Technical Data | NSN 5310-00-086-5471
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.190 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| NUT LENGTH | 0.641 INCHES NOMINAL |
| NUT WIDTH | 0.625 INCHES NOMINAL |
| PANEL THICKNESS | 0.064 INCHES NOMINAL |
| SPECIAL FEATURES | SUPPLEMENTARY OIL DIP |
