NSN 5310-00-089-6304
Part Details | SHEET SPRING NUT
5310-00-089-6304 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: 13211E8382, 54642, 12689964, 1268996-4, 121102011, 12-11020-11, 1102011, 11020-11, 130105041, 5310-00-089-6304, 00-089-6304, 5310000896304, 000896304
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-089-6304 | 01865 ( NUT, SHEET SPRING ) |
REFERENCE DRAWINGS & PICTURES

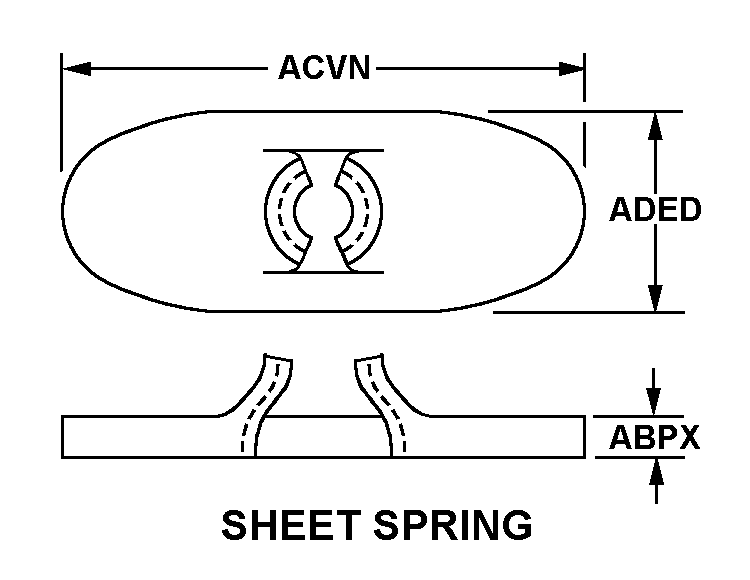

SHEET SPRING
2 HOLES
Cross Reference | NSN 5310-00-089-6304
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13211E8382 | 97403 | CECOM LR CENTER |
| 54642 | 94833 | KECO INDUSTRIES INC. |
| 1268996-4 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 12-11020-11 | 94222 | SOUTHCO, INC. |
| 11020-11 | 94222 | SOUTHCO, INC. |
| 130105041 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5310-00-089-6304
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.086 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| NUT LENGTH | 1.065 INCHES NOMINAL |
| NUT WIDTH | 0.500 INCHES NOMINAL |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | 8 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.135 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.750 INCHES NOMINAL |
