NSN 5310-00-089-7624
Part Details | EYE NUT
5310-00-089-7624 A combination eye and nut, formed in one piece, and when fitted to an externally threaded object, the eye is used as an attaching medium.
Alternate Parts: 6512, 5310-00-089-7624, 00-089-7624, 5310000897624, 000897624
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 13, 1967 | 00-089-7624 | 15897 ( NUT, EYE ) |

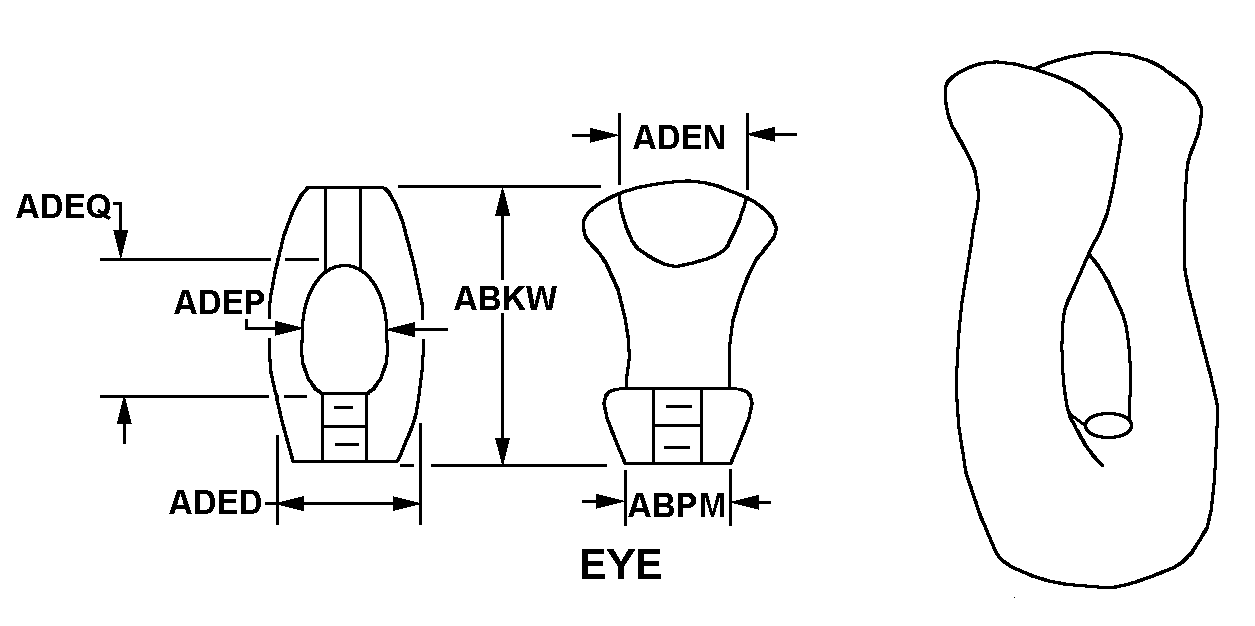

REFERENCE DRAWINGS & PICTURES
EYE
Cross Reference | NSN 5310-00-089-7624
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6512 | 73569 | LA CHANCE LTD |
Technical Data | NSN 5310-00-089-7624
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNS |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 8 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | EYE |
| OVERALL HEIGHT | 3.875 INCHES NOMINAL |
| BODY DIAMETER | 1.765 INCHES NOMINAL |
| NUT WIDTH | 1.875 INCHES NOMINAL |
| HOLE WIDTH | 1.125 INCHES NOMINAL |
| HOLE HEIGHT | 1.625 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
