NSN 5310-00-093-3329
Part Details | DOUBLE HEXAGON CASTELLATED PLAIN NUT
5310-00-093-3329 A nut having 12 drive points and 24 sides, flat on the bottom, and having a slotted cylindrical or dome shaped upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin.
Alternate Parts: ST3M5247ME, ST3M524-7ME, ST3M5247, ST3M524-7, 737467, 73746-7, 5310-00-093-3329, 00-093-3329, 5310000933329, 000933329
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 03, 1972 | 00-093-3329 | 38228 ( NUT, PLAIN, CASTELLATED, DOUBLE HEXAGON ) |
REFERENCE DRAWINGS & PICTURES

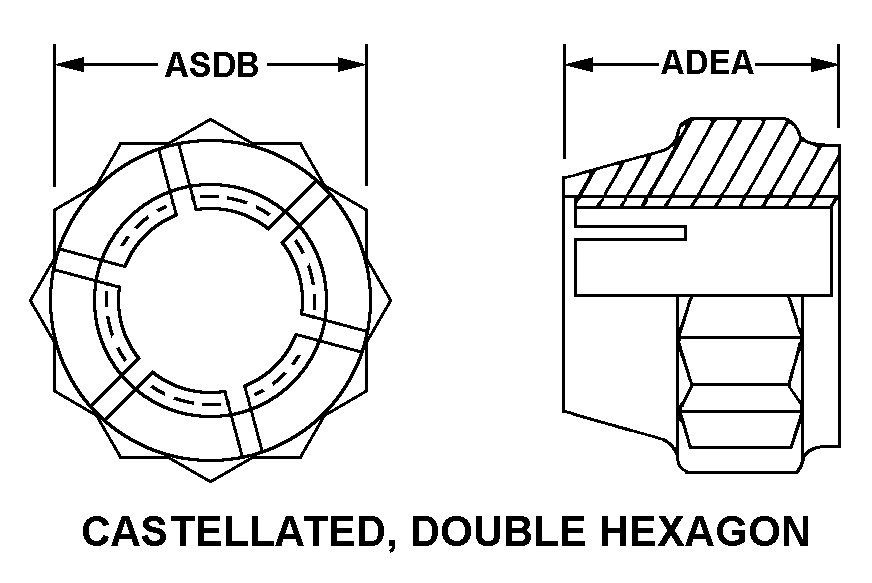

CASTELLATED, DOUBLE HEXAGON
Cross Reference | NSN 5310-00-093-3329
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST3M524-7ME | 76301 | BOEING COMPANY, THEDBA BOEING |
| ST3M524-7 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 73746-7 | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
Technical Data | NSN 5310-00-093-3329
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | CASTELLATED, DOUBLE HEXAGON |
| NUT HEIGHT | 0.360 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.679 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| BEARING SURFACE TYPE | CHAMFERED |
| LUBRICATION | DRY FILM LUBRICANT |
