NSN 5310-00-094-6903
Part Details | LOCK WASHER
5310-00-094-6903 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Alternate Parts: 2W134, 2W13-4, 2W134, 2W13-4, 5310-00-094-6903, 00-094-6903, 5310000946903, 000946903
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-094-6903 | 14218 ( WASHER, LOCK ) |
REFERENCE DRAWINGS & PICTURES

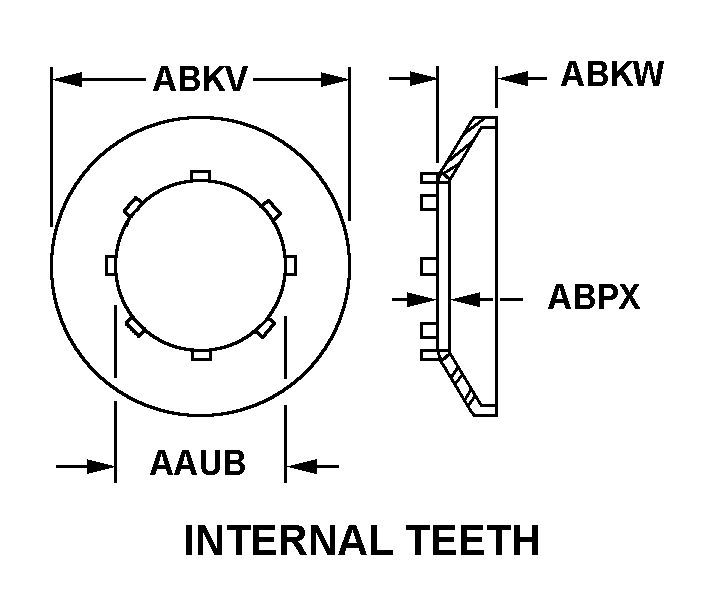

INTERNAL TEETH
Cross Reference | NSN 5310-00-094-6903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2W13-4 | 43999 | BOEING COMPANY, THEDBA BOEING |
| 2W13-4 | 89372 | ROCKWELL INTERNATIONAL CORPNORTH AMERICAN AIRCRAFT OPNS |
Technical Data | NSN 5310-00-094-6903
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C INTERNAL TEETH |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.006 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.080 INCHES NOMINAL |
