NSN 5310-00-103-2954
Part Details | LOCK WASHER
5310-00-103-2954 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Alternate Parts: RLA47SM6(.422), ST53100260008, ST5310-026-0008, 5310-00-103-2954, 00-103-2954, 5310001032954, 001032954
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 07, 1968 | 00-103-2954 | 14218 ( WASHER, LOCK ) |

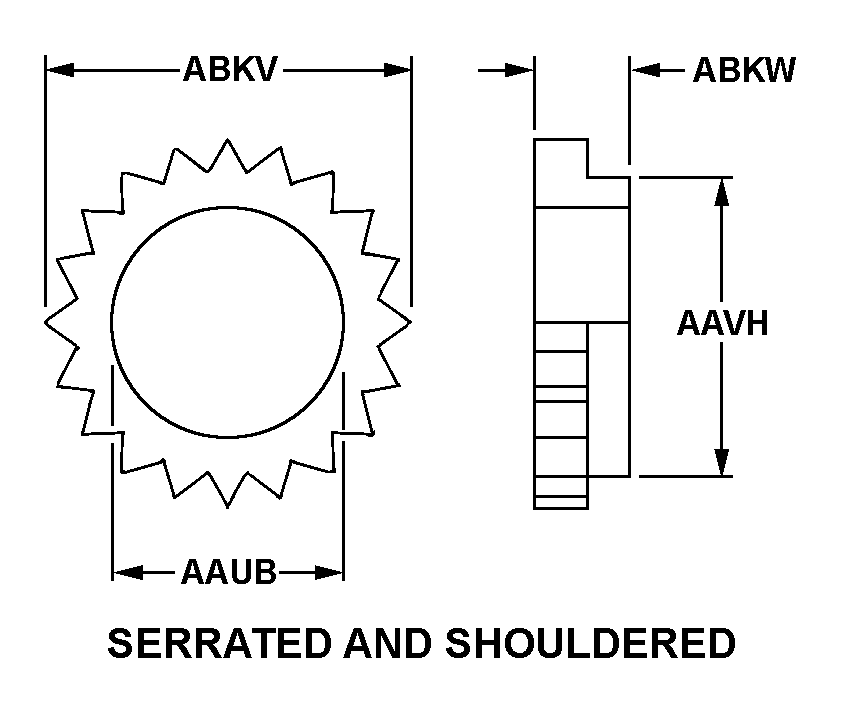

REFERENCE DRAWINGS & PICTURES
SERRATED AND SHOULDERED
Cross Reference | NSN 5310-00-103-2954
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RLA47SM6(.422) | 83324 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| ST5310-026-0008 | 04614 | TEXTRON SYSTEMS CORPORATIONDBA TEXTRON DEFENSE SYSTEMS |
Technical Data | NSN 5310-00-103-2954
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SERRATED AND SHOULDERED |
| HOLE DIAMETER | 0.422 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.702 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.767 INCHES NOMINAL |
| OVERALL HEIGHT | 0.094 INCHES NOMINAL |
