NSN 5310-00-109-7618
Part Details | PUSH ON NUT
5310-00-109-7618 An item formed from sheet spring material into varying flat, concave, curved, or nutlike design. It has an aperture with an elliptical-shaped hole or suitable lugs or prongs designed to retain threaded or unthreaded stud like projecting memebers. When pushed on, it grips by imbedding into the material of the projecting memebers, and does not mate with a thread helix. See also RING, RETAINING.
Alternate Parts: 323966, 323966, 323966, 323966, 323966, 5310-00-109-7618, 00-109-7618, 5310001097618, 001097618
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 02, 1968 | 00-109-7618 | 05281 ( PUSH ON NUT ) |

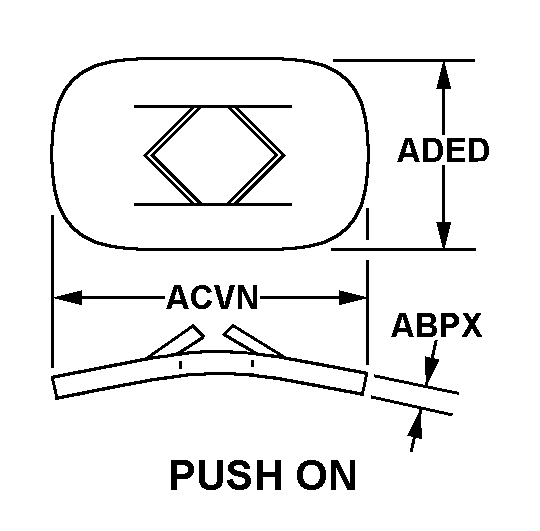

REFERENCE DRAWINGS & PICTURES
PUSH ON
Cross Reference | NSN 5310-00-109-7618
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 323966 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 323966 | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
| 323966 | 06KW9 | LUCENT TECHNOLOGIES INCDBA FEDERAL MARKETING GROUP |
| 323966 | 57712 | TELEMECHANICS INC |
| 323966 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5310-00-109-7618
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.312 INCHES NOMINAL |
| NUT STYLE | PUSH ON |
| MATERIAL THICKNESS | 0.021 INCHES NOMINAL |
| NUT LENGTH | 0.562 INCHES NOMINAL |
| NUT WIDTH | 0.437 INCHES NOMINAL |
