NSN 5310-00-109-9006
Part Details | SPLINE SELF-LOCKING NUT
5310-00-109-9006 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.
Alternate Parts: H2963612, H29636-12, 9645M39P04, 9645M39P02, N8578126, N8578-126, 5310-00-109-9006, 00-109-9006, 5310001099006, 001099006
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 02, 1968 | 00-109-9006 | 15893 ( NUT, SELF-LOCKING, SPLINE ) |

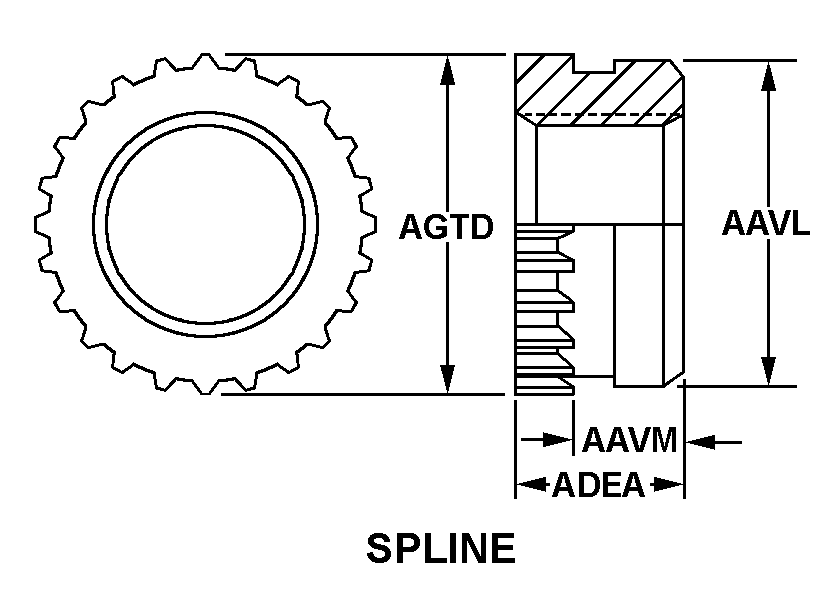

REFERENCE DRAWINGS & PICTURES
SPLINE
Cross Reference | NSN 5310-00-109-9006
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H29636-12 | 15653 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 9645M39P04 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| 9645M39P02 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| N8578-126 | 72962 | HARVARD INDUSTRIES INC |
Technical Data | NSN 5310-00-109-9006
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | SPLINE |
| PILOT DIAMETER | 1.111 INCHES MINIMUM AND 1.123 INCHES MAXIMUM |
| PILOT LENGTH | 0.606 INCHES MAXIMUM |
| NUT DIAMETER | 1.250 INCHES MAXIMUM |
| NUT HEIGHT | 0.791 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 575.0 DEG FAHRENHEIT MINIMUM AND 625.0 DEG FAHRENHEIT MAXIMUM |
| PRECIOUS MATERIAL | SILVER |
