NSN 5310-00-109-9027
Part Details | CONCAVE WASHER
5310-00-109-9027 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is recessed to form a curved or spherical contour. See also WASHER (1), CONVEX. Excludes WASHER (1), RECESSED and BEARING, WASHER, THRUST.
Alternate Parts: K296383, K29638-3, 9648M65P01, 5310-00-109-9027, 00-109-9027, 5310001099027, 001099027
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 02, 1968 | 00-109-9027 | 15930 ( WASHER, CONCAVE ) |

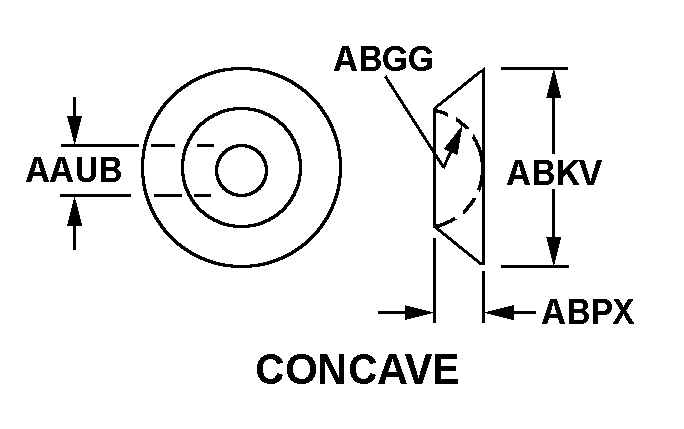

REFERENCE DRAWINGS & PICTURES
CONCAVE
Cross Reference | NSN 5310-00-109-9027
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K29638-3 | 15653 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 9648M65P01 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
Technical Data | NSN 5310-00-109-9027
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONCAVE |
| HOLE DIAMETER | 0.258 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| RADIUS | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.360 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| RECESS DIAMETER | 0.322 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.070 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| HEAT TREATMENT | AS FABRICATED |
