NSN 5310-00-111-7634
Part Details | SHEET SPRING NUT
5310-00-111-7634 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: CSA46214, C17110324, C171-1032-4, 5310-00-111-7634, 00-111-7634, 5310001117634, 001117634
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 21, 1968 | 00-111-7634 | 01865 ( NUT, SHEET SPRING ) |

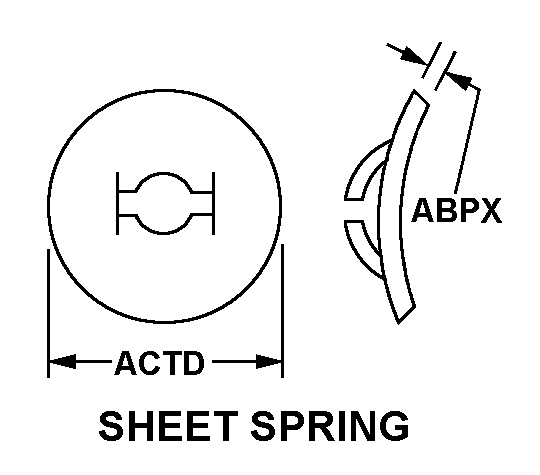

REFERENCE DRAWINGS & PICTURES
SHEET SPRING
2 HOLES
Cross Reference | NSN 5310-00-111-7634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CSA46214 | 82254 | CURTIS DYNA-FOG, LTD. |
| C171-1032-4 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
Technical Data | NSN 5310-00-111-7634
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.218 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.017 INCHES NOMINAL |
| NUT DIAMETER | 0.570 INCHES NOMINAL |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | 8 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.103 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.207 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.415 INCHES NOMINAL |
