NSN 5310-00-112-0481
Part Details | WING PLAIN NUT
5310-00-112-0481 A nut having wings designed for manual turning without driver or wrench.
Alternate Parts: 5310001120481, 10943082, 5310-00-112-0481, 00-112-0481, 5310001120481, 001120481
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 23, 1968 | 00-112-0481 | 01862 ( NUT, PLAIN, WING ) |

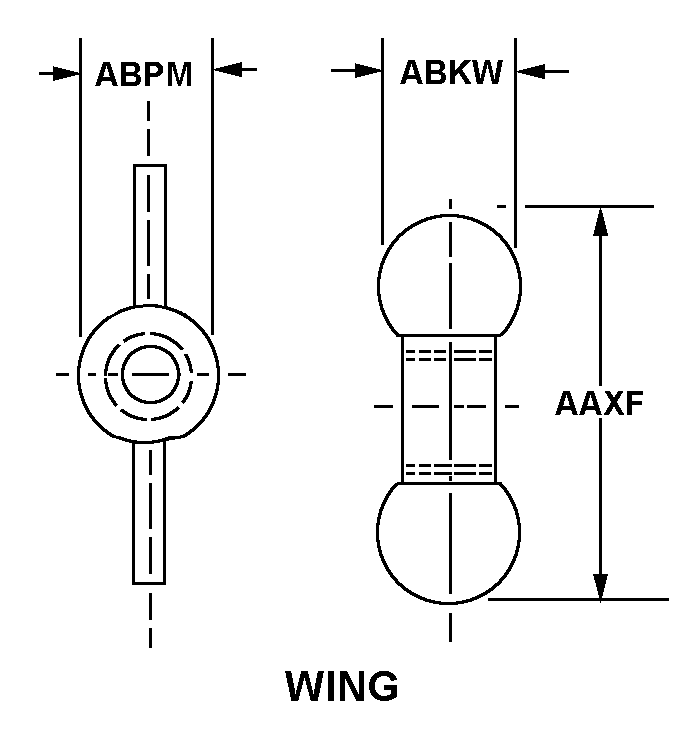

REFERENCE DRAWINGS & PICTURES
WING
Cross Reference | NSN 5310-00-112-0481
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310001120481 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10943082 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5310-00-112-0481
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| HARDNESS RATING | 25.0 ROCKWELL C MINIMUM AND 30.0 ROCKWELL C MAXIMUM |
| NUT STYLE | WING |
| WING SPREAD WIDTH | 4.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| BODY DIAMETER | 1.500 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
