NSN 5310-00-112-1391
Part Details | WELDING PLAIN NUT
5310-00-112-1391 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: 22375824, 2237582-4, WNS8321, WNS-832-1, 5310-00-112-1391, 00-112-1391, 5310001121391, 001121391
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 23, 1968 | 00-112-1391 | 15885 ( NUT, PLAIN, WELDING ) |
REFERENCE DRAWINGS & PICTURES

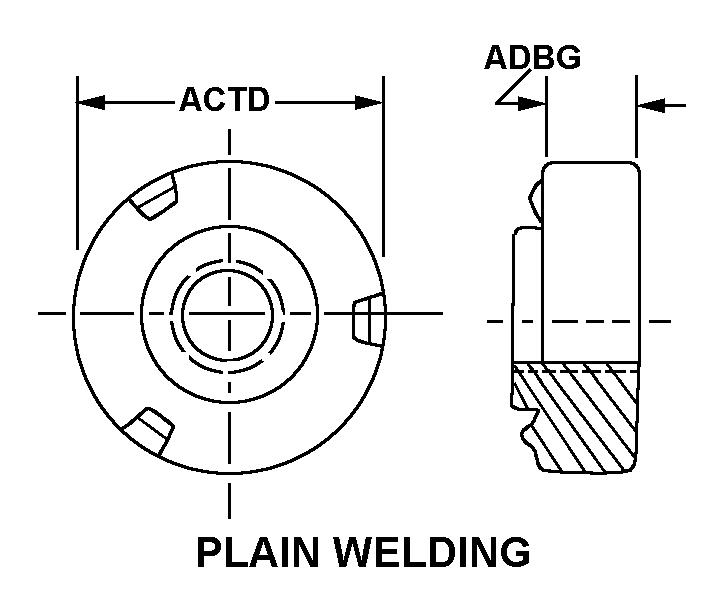

PLAIN WELDING
Cross Reference | NSN 5310-00-112-1391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2237582-4 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| WNS-832-1 | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
Technical Data | NSN 5310-00-112-1391
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| NUT DIAMETER | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| NUT THICKNESS | 0.099 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |
