NSN 5310-00-114-1181
Part Details | KEY WASHER
5310-00-114-1181 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: 210118202, 2-101-182-02, 5310-00-114-1181, 00-114-1181, 5310001141181, 001141181
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 07, 1968 | 00-114-1181 | 01869 ( WASHER, KEY ) |

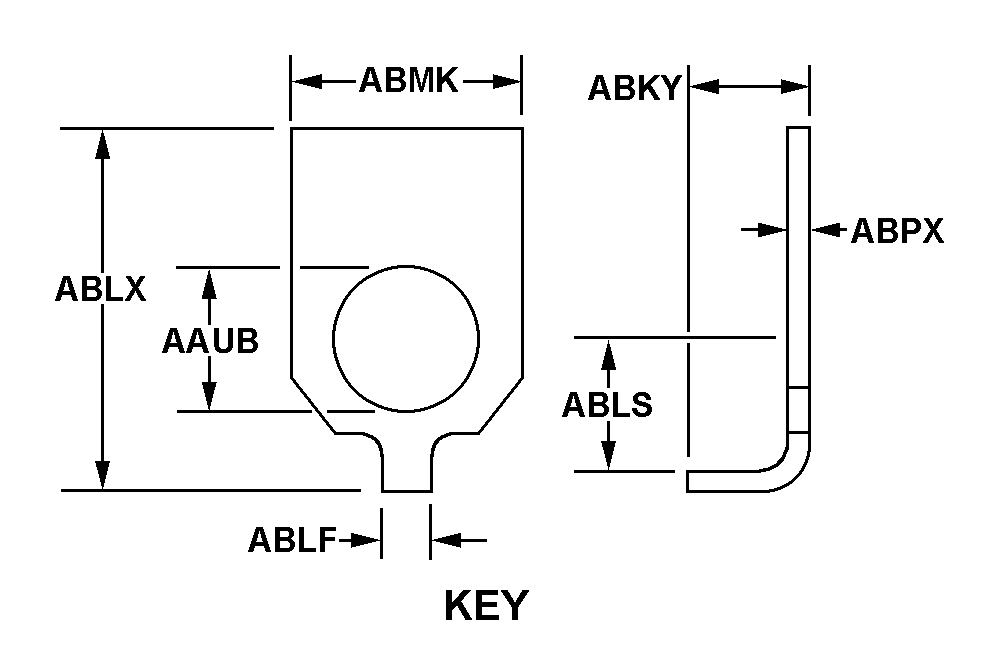

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5310-00-114-1181
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-101-182-02 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5310-00-114-1181
| Characteristic | Specifications |
|---|---|
| HARDNESS RATING | 76.0 ROCKWELL SUPERFICIAL 30-T MAXIMUM |
| STYLE DESIGNATOR | KEY |
| HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.195 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY LENGTH | 0.270 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY WIDTH | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY | 0.350 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| OVERALL DISTANCE INCLUDING KEYS | 0.549 INCHES MINIMUM AND 0.555 INCHES MAXIMUM |
| OVERALL WIDTH | 0.300 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.019 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
