NSN 5310-00-114-5630
Part Details | CLIP-ON NUT
5310-00-114-5630 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Alternate Parts: S10080062, S10080-06-2, 477 756, SL210062, SL210-06-2, SL210062, SL210-06-2, A30573423, A3057342-3, SL2100622, SL210-062-2, 5310-00-114-5630, 00-114-5630, 5310001145630, 001145630
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 20, 1972 | 00-114-5630 | 35871 ( NUT, CLIP-ON ) |
REFERENCE DRAWINGS & PICTURES

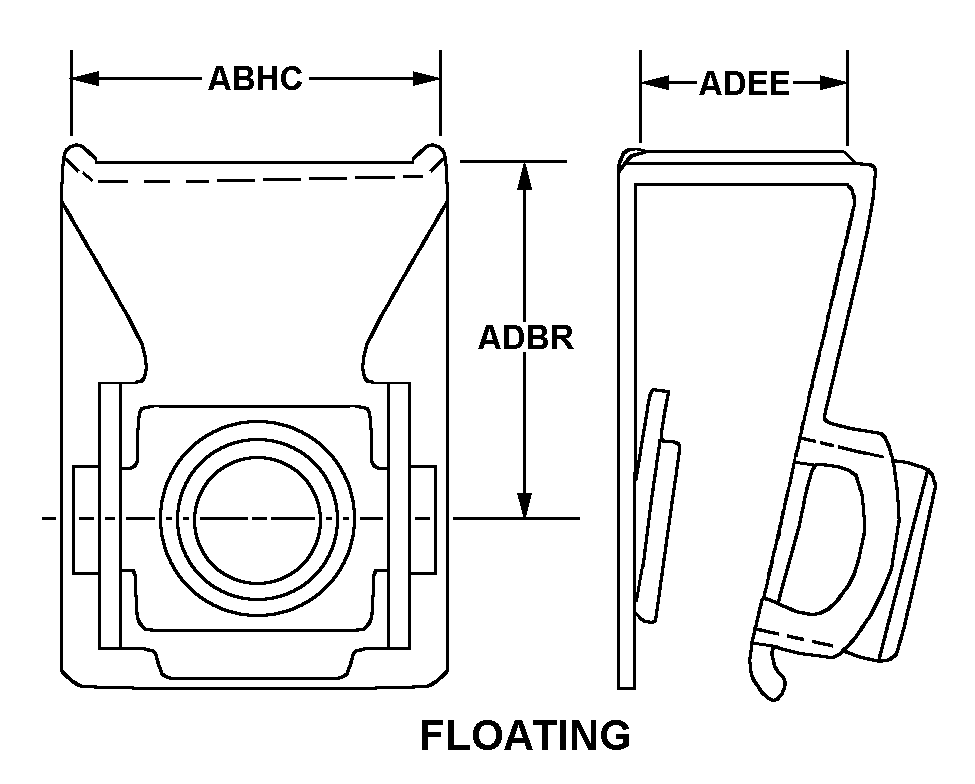

FLOATING
Cross Reference | NSN 5310-00-114-5630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S10080-06-2 | 05395 | L-3 COMMUNICATIONS CORPORATIONDBA MISSION INTEGRATION DIVISION |
| 477 756 | 77294 | PIPER AIRCRAFT INC. |
| SL210-06-2 | 52828 | REPUBLIC FASTENER MFG. CORPDBA ARCONIC FASTENING SYSTEMS AND |
| SL210-06-2 | 97393 | SPS TECHNOLOGIES, LLCDBA SHUR-LOK COMPANY |
| A3057342-3 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SL210-062-2 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5310-00-114-5630
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | FLOATING |
| OVERALL WIDTH | 0.437 INCHES NOMINAL |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.275 INCHES NOMINAL |
| PANEL THICKNESS | 0.125 INCHES MINIMUM |
| LOCKING FEATURE | |
| SPECIAL FEATURES | DRY FILM LUBRICANT |
