NSN 5310-00-115-0143
Part Details | PUSH ON NUT
5310-00-115-0143 An item formed from sheet spring material into varying flat, concave, curved, or nutlike design. It has an aperture with an elliptical-shaped hole or suitable lugs or prongs designed to retain threaded or unthreaded stud like projecting memebers. When pushed on, it grips by imbedding into the material of the projecting memebers, and does not mate with a thread helix. See also RING, RETAINING.
Alternate Parts: 13206E1044, 5310-00-115-0143, 00-115-0143, 5310001150143, 001150143
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 13, 1968 | 00-115-0143 | 05281 ( PUSH ON NUT ) |

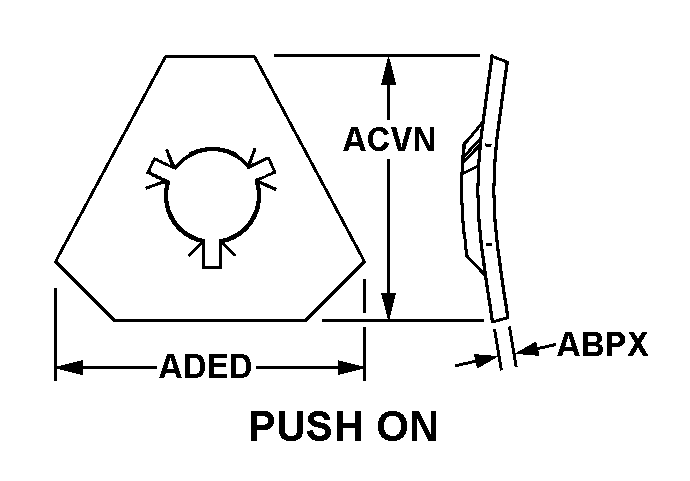

REFERENCE DRAWINGS & PICTURES
PUSH ON
Cross Reference | NSN 5310-00-115-0143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13206E1044 | 97403 | CECOM LR CENTER |
Technical Data | NSN 5310-00-115-0143
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.250 INCHES NOMINAL |
| NUT STYLE | PUSH ON |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| NUT LENGTH | 0.587 INCHES NOMINAL |
| NUT WIDTH | 0.677 INCHES NOMINAL |
