NSN 5310-00-118-5050
Part Details | BARREL PLAIN NUT
5310-00-118-5050 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. Excludes NUT (1), PLAIN, ROUND.
Alternate Parts: 307071, 307071, 307071, 5310-00-118-5050, 00-118-5050, 5310001185050, 001185050
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 11, 1968 | 00-118-5050 | 21926 ( NUT, PLAIN, BARREL ) |
REFERENCE DRAWINGS & PICTURES

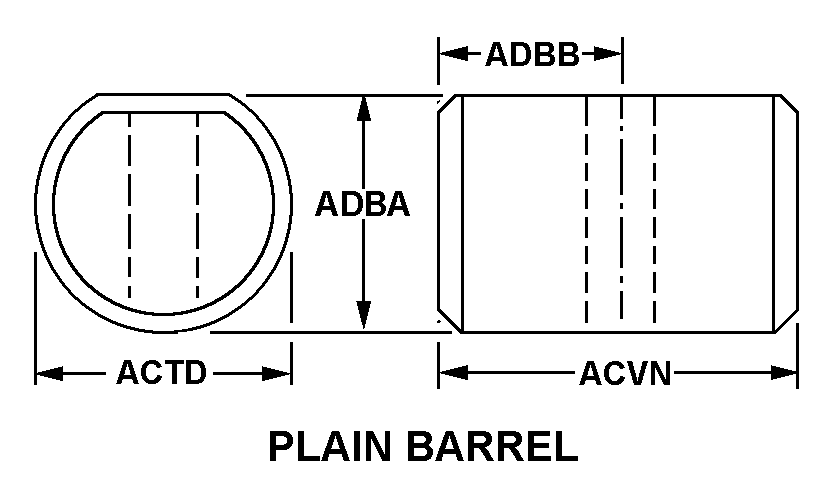

PLAIN BARREL
Cross Reference | NSN 5310-00-118-5050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 307071 | 1UVT5 | BRP US INC.DBA BOMBARDIER MOTOR CORP OF AMERICA |
| 307071 | 21119 | EVINRUDE MOTORSPRODUCT GROUP OF OUTBOARD MARINE |
| 307071 | 80256 | OUTBOARD MARINE CORP |
Technical Data | NSN 5310-00-118-5050
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN BARREL |
| NUT DIAMETER | 0.434 INCHES NOMINAL |
| NUT LENGTH | 0.438 INCHES NOMINAL |
| BARREL HEIGHT | 0.191 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF THREADED HOLE TO END OF NUT | 0.219 INCHES NOMINAL |
