NSN 5310-00-119-3902
Part Details | WING PLAIN NUT
5310-00-119-3902 A nut having wings designed for manual turning without driver or wrench.
Alternate Parts: 5310001193902, 11589663, 5310-00-119-3902, 00-119-3902, 5310001193902, 001193902
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 18, 1968 | 00-119-3902 | 01862 ( NUT, PLAIN, WING ) |

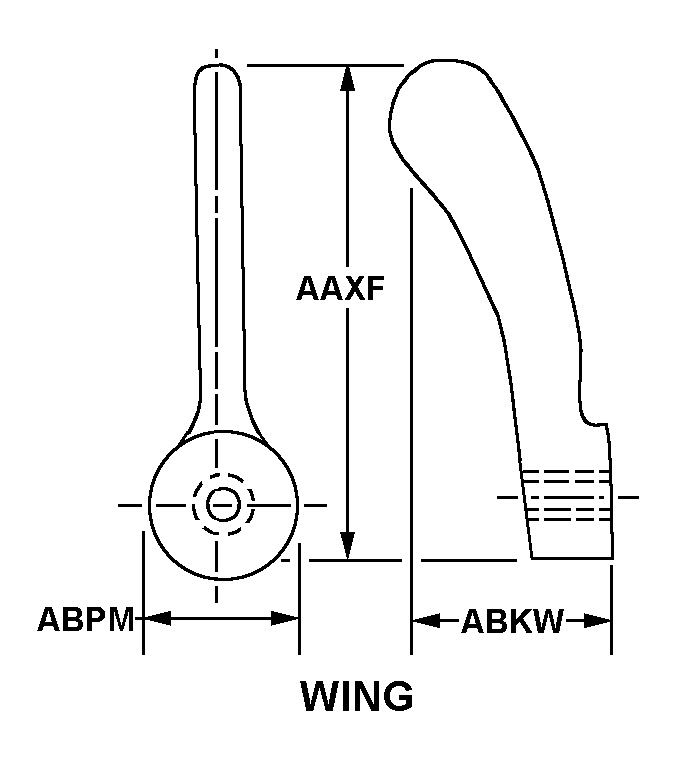

REFERENCE DRAWINGS & PICTURES
WING
CONFIGURATION K
Cross Reference | NSN 5310-00-119-3902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310001193902 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 11589663 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5310-00-119-3902
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | WING |
| WING SPREAD WIDTH | 1.875 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| BODY DIAMETER | 0.625 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | CONFIGURATION K |
| HOLE TYPE AND QUANTITY | 1 DRILLED |
| DRILLED HOLE DIAMETER | 0.095 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
