NSN 5310-00-121-8275
Part Details | SPLINE PLAIN NUT
5310-00-121-8275 A nut having an externally splined sleeve which holds it in position when forced into a hole of slightly smaller diameter.
Alternate Parts: 9167537, 5310-00-121-8275, 00-121-8275, 5310001218275, 001218275
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 25, 1968 | 00-121-8275 | 01861 ( NUT, PLAIN, SPLINE ) |

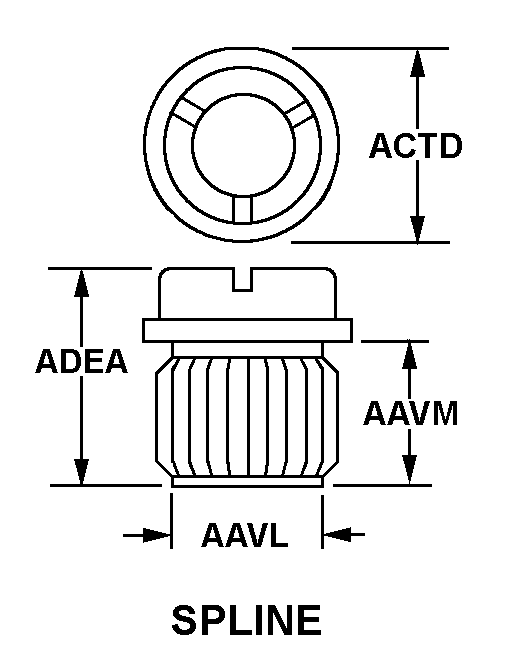

REFERENCE DRAWINGS & PICTURES
SPLINE
Cross Reference | NSN 5310-00-121-8275
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9167537 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5310-00-121-8275
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | SPLINE |
| PILOT DIAMETER | 0.278 INCHES MINIMUM AND 0.282 INCHES MAXIMUM |
| PILOT LENGTH | 0.078 INCHES NOMINAL |
| NUT DIAMETER | 0.375 INCHES NOMINAL |
| NUT HEIGHT | 0.333 INCHES MINIMUM AND 0.353 INCHES MAXIMUM |
