NSN 5310-00-122-5484
Part Details | WING PLAIN NUT
5310-00-122-5484 A nut having wings designed for manual turning without driver or wrench.
Alternate Parts: 175607, 175607, 175607, 5310-00-122-5484, 00-122-5484, 5310001225484, 001225484
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-122-5484 | 01862 ( NUT, PLAIN, WING ) |

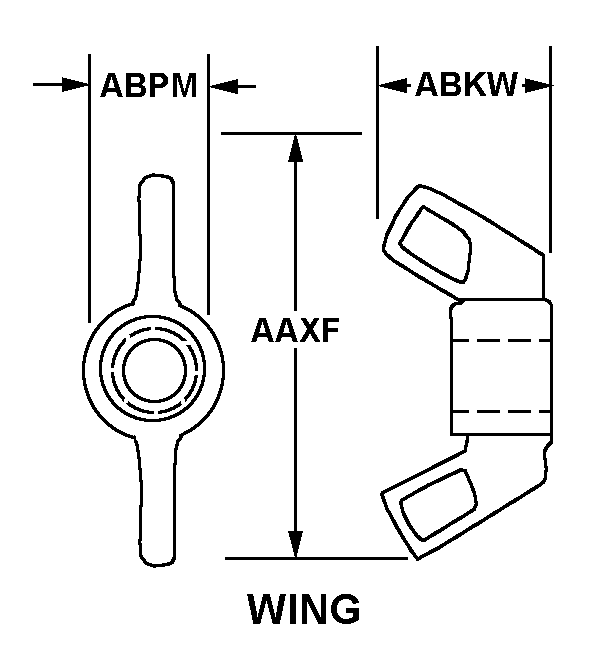

REFERENCE DRAWINGS & PICTURES
WING
Cross Reference | NSN 5310-00-122-5484
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 175607 | 17772 | AERO ENGINEERING & MANUFACTURINGCOMPANY OF CALIFORNIA |
| 175607 | 52916 | CAPRICE ENGINEERING COMPANY INCDBA CAPRICE ENG CO |
| 175607 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5310-00-122-5484
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | WING |
| WING SPREAD WIDTH | 2.990 INCHES MINIMUM AND 3.010 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.870 INCHES MINIMUM AND 0.930 INCHES MAXIMUM |
| BODY DIAMETER | 0.850 INCHES MINIMUM AND 0.910 INCHES MAXIMUM |
| FABRICATION METHOD | FORGED |
