NSN 5310-00-122-8001
Part Details | ROUND PLAIN NUT
5310-00-122-8001 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED. (When height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.)
Alternate Parts: 30491, 5310-00-122-8001, 00-122-8001, 5310001228001, 001228001
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-122-8001 | 15887 ( NUT, PLAIN, ROUND ) |

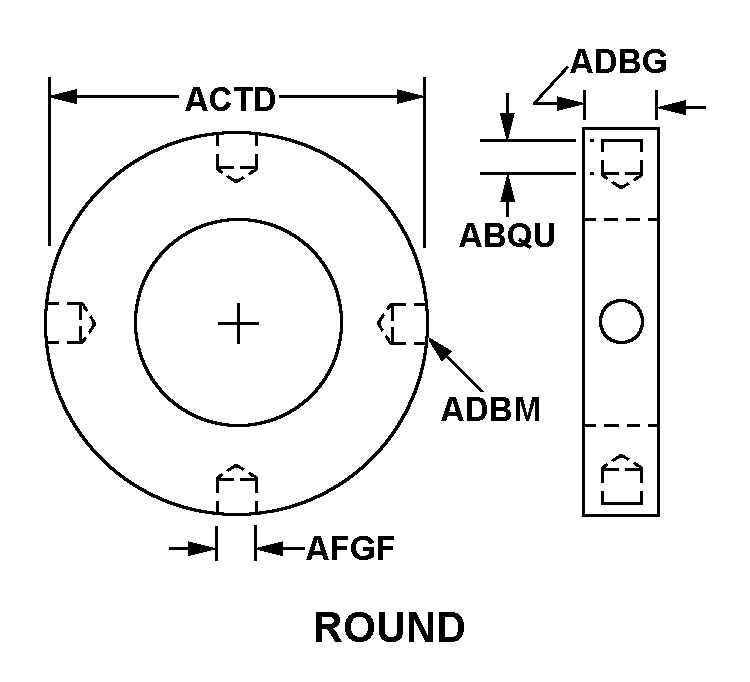

REFERENCE DRAWINGS & PICTURES
ROUND
CONFIGURATION F
Cross Reference | NSN 5310-00-122-8001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30491 | 77294 | PIPER AIRCRAFT INC. |
Technical Data | NSN 5310-00-122-8001
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 1.250 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | ROUND |
| DRIVE POINT DEPTH | 0.094 INCHES NOMINAL |
| NUT DIAMETER | 1.438 INCHES NOMINAL |
| NUT THICKNESS | 0.875 INCHES NOMINAL |
| DRIVE POINT DIAMETER | 0.156 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 6 |
| HOLE CONFIGURATION STYLE | CONFIGURATION F |
| HOLE TYPE AND QUANTITY | 6 DRILLED |
| DRILLED HOLE DIAMETER | 0.156 INCHES NOMINAL |
