NSN 5310-00-124-8989
Part Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY
5310-00-124-8989 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Alternate Parts: 646247, 646247, 646247, 646247, 5310-00-124-8989, 00-124-8989, 5310001248989, 001248989
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 08, 1968 | 00-124-8989 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

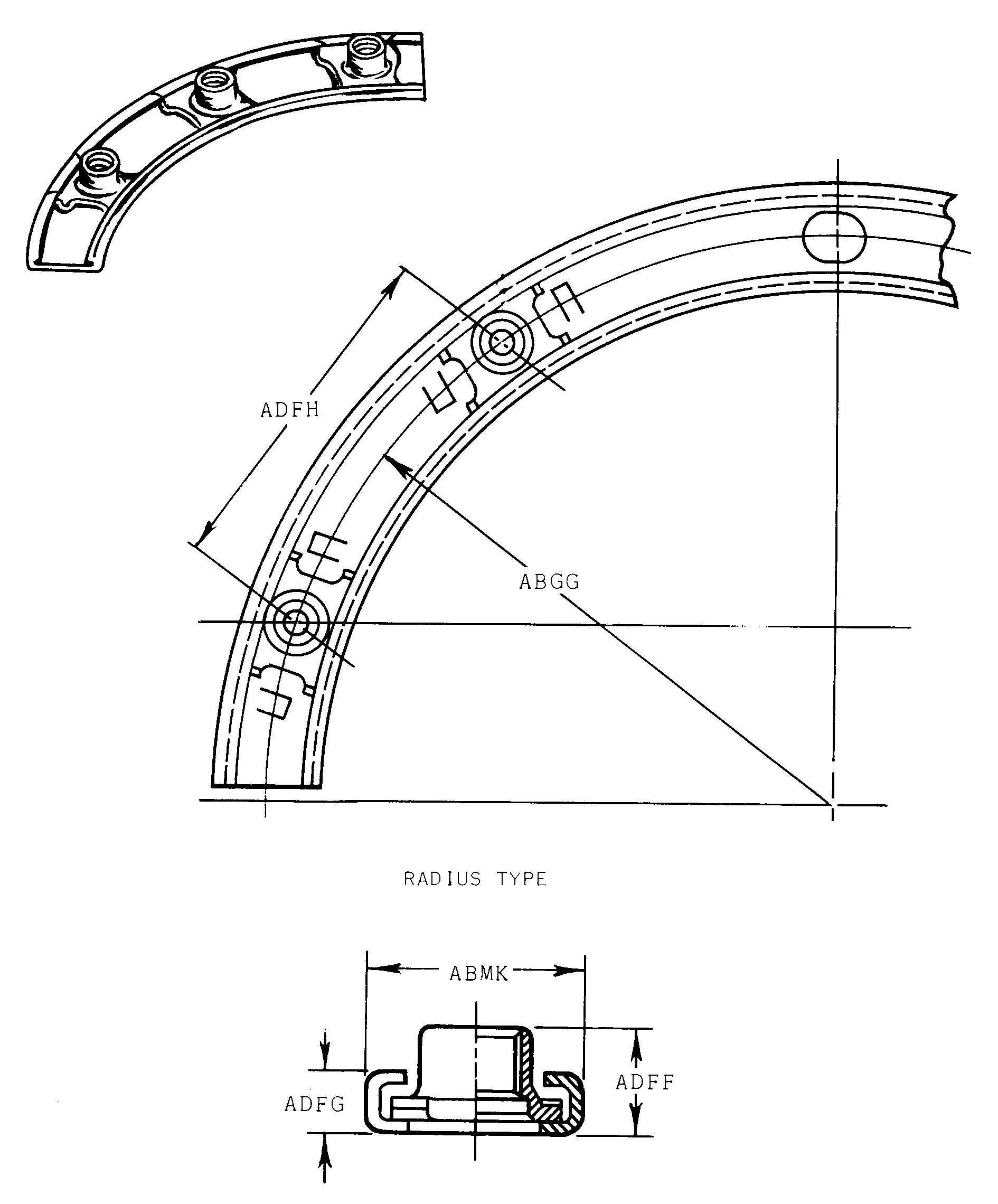

REFERENCE DRAWINGS & PICTURES
GANG CHANNEL, SELF LOCKING
RADIUS TYPE
Cross Reference | NSN 5310-00-124-8989
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 646247 | 15653 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 646247 | 019L2 | FITZ AEROSPACE, LLCDBA ESNA |
| 646247 | 72962 | HARVARD INDUSTRIES INC |
| 646247 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 5310-00-124-8989
| Characteristic | Specifications |
|---|---|
| NUT STYLE | GANG CHANNEL, SELF LOCKING |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | RADIUS TYPE |
| RADIUS | 13.680 INCHES NOMINAL |
| OVERALL WIDTH | 0.446 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| CHANNEL HEIGHT | 0.118 INCHES MINIMUM AND 0.147 INCHES MAXIMUM |
| NUT QUANTITY | 36 |
