NSN 5310-00-124-9117
Part Details | KEY WASHER
5310-00-124-9117 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: UB2215, 5310-00-124-9117, 00-124-9117, 5310001249117, 001249117
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 08, 1968 | 00-124-9117 | 01869 ( WASHER, KEY ) |

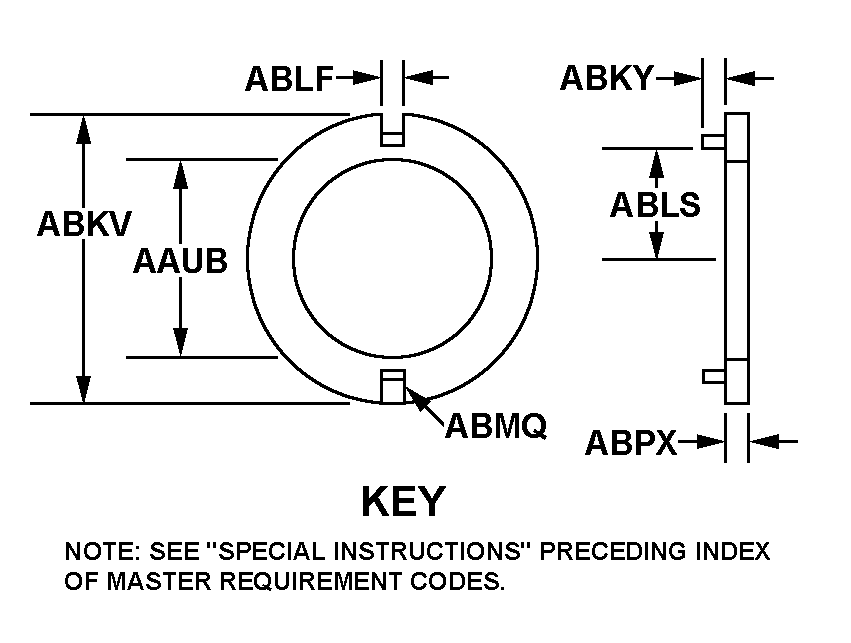

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5310-00-124-9117
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| UB2215 | 0HWJ9 | BERA TILT-TOP TRAILER INC |
Technical Data | NSN 5310-00-124-9117
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY |
| EXTERNAL KEY QUANTITY | 1 |
| HOLE DIAMETER | 0.328 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.875 INCHES NOMINAL |
| EXTERNAL PREBENT KEY LENGTH | 0.282 INCHES NOMINAL |
| EXTERNAL PREBENT KEY WIDTH | 0.125 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY | 0.656 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.188 INCHES NOMINAL |
