NSN 5310-00-124-9233
Part Details | CLINCH PLAIN NUT
5310-00-124-9233 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole.
Alternate Parts: 16198351, 1619835-1, 5310-00-124-9233, 00-124-9233, 5310001249233, 001249233
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 08, 1968 | 00-124-9233 | 01860 ( NUT, PLAIN, CLINCH ) |

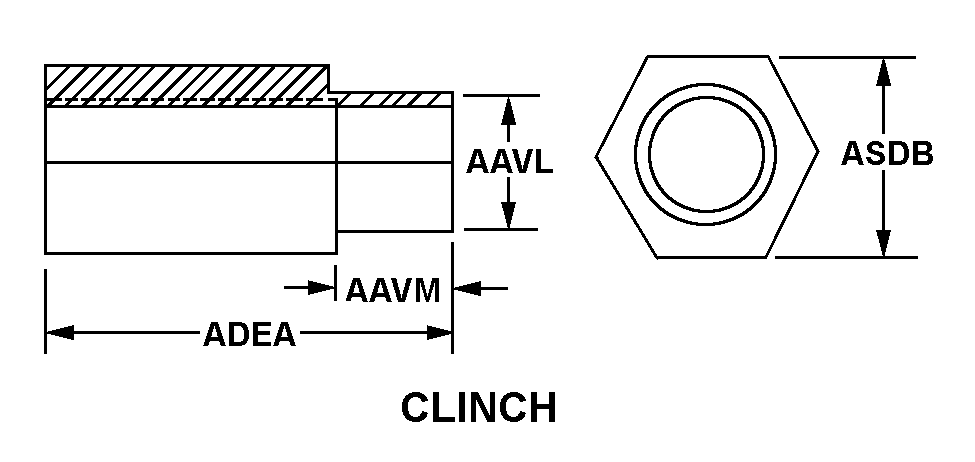

REFERENCE DRAWINGS & PICTURES
CLINCH
Cross Reference | NSN 5310-00-124-9233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1619835-1 | 99251 | CARLETON LIFE SUPPORT SYSTEMS INC.DBA COBHAM MISSION SYSTEM |
Technical Data | NSN 5310-00-124-9233
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.099 INCHES |
| THREAD QUANTITY PER INCH | 48 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | CLINCH |
| PILOT DIAMETER | 0.172 INCHES NOMINAL |
| PILOT LENGTH | 0.062 INCHES NOMINAL |
| NUT HEIGHT | 0.156 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.188 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NAVY SPECIAL PROJECT |
