NSN 5310-00-124-9265
Part Details | ASSEMBLED WASHER PLAIN NUT
5310-00-124-9265 A plain nut on which has been assembled a nonremovable washer.
Alternate Parts: 271169, 5593413, 271168, 5310PL0370744, 271169, 5310-00-124-9265, 00-124-9265, 5310001249265, 001249265
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 15, 1968 | 00-124-9265 | 21824 ( NUT, PLAIN, ASSEMBLED WASHER ) |
REFERENCE DRAWINGS & PICTURES

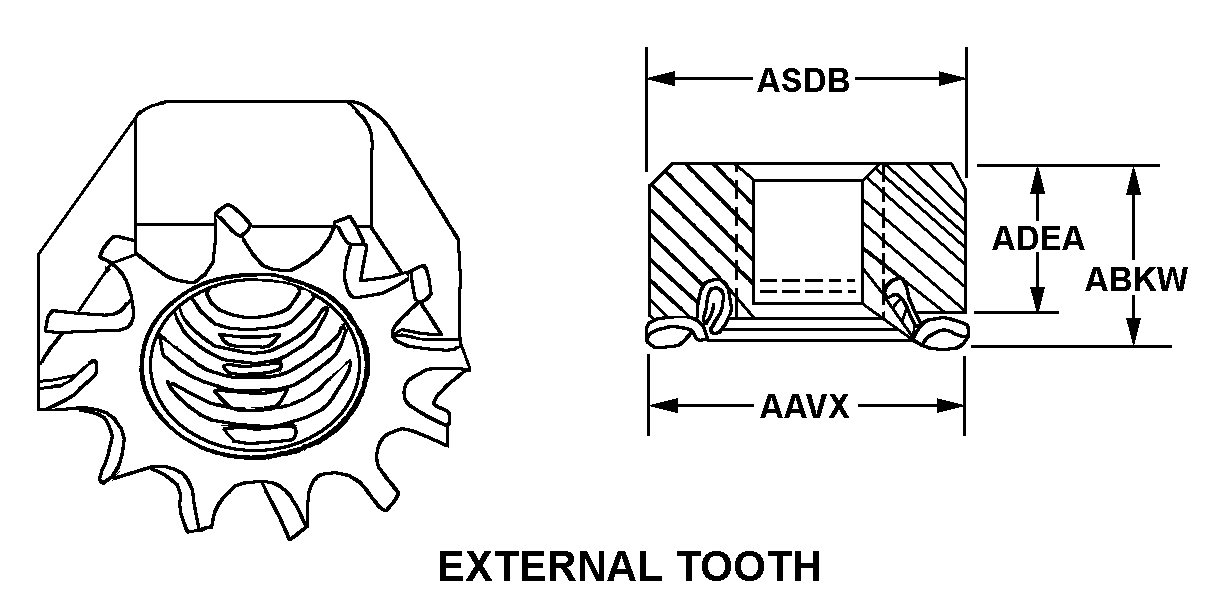

EXTERNAL TOOTH
Cross Reference | NSN 5310-00-124-9265
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 271169 | 34623 | AM GENERAL LLC |
| 5593413 | 34623 | AM GENERAL LLC |
| 271168 | 24617 | GENERAL MOTORS CORP |
| 5310PL0370744 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 271169 | 72582 | MTU AMERICA INC. |
Technical Data | NSN 5310-00-124-9265
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | EXTERNAL TOOTH |
| WASHER OUTSIDE DIAMETER | 0.395 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.160 INCHES NOMINAL |
| NUT HEIGHT | 0.117 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.362 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
