NSN 5310-00-124-9272
Part Details | WELDING PLAIN NUT
5310-00-124-9272 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: RN2113, 48784, 4-878-4, RN2113, 5310-00-124-9272, 00-124-9272, 5310001249272, 001249272
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 08, 1968 | 00-124-9272 | 15885 ( NUT, PLAIN, WELDING ) |

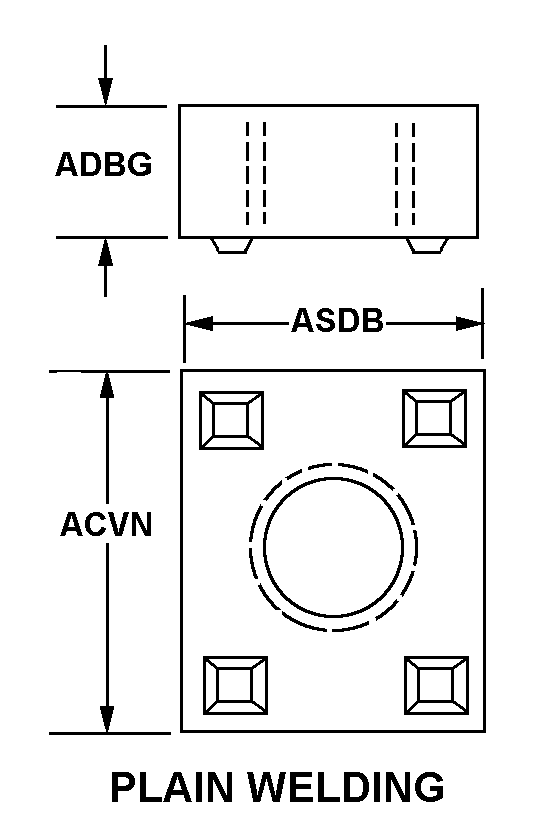

REFERENCE DRAWINGS & PICTURES
PLAIN WELDING
Cross Reference | NSN 5310-00-124-9272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RN2113 | 76871 | OHIO NUT AND BOLT CO DIV OFFASTENER INDUSTRIES INC |
| 4-878-4 | 93929 | SPX CORPORATIONDBA RADIODETECTION |
| RN2113 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5310-00-124-9272
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| NUT LENGTH | 0.812 INCHES NOMINAL |
| NUT THICKNESS | 0.125 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |
