NSN 5310-00-124-9825
Part Details | ROUND PLAIN NUT
5310-00-124-9825 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED. (When height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.)
Alternate Parts: 5444350711, 54443-507-11, 5444350711, 54443-507-11, 5310-00-124-9825, 00-124-9825, 5310001249825, 001249825
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 08, 1968 | 00-124-9825 | 15887 ( NUT, PLAIN, ROUND ) |

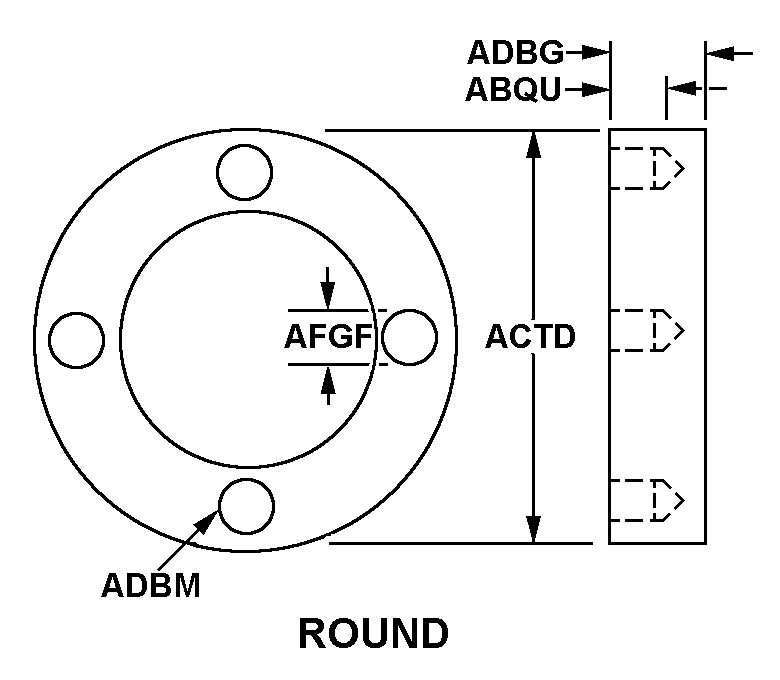

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 5310-00-124-9825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 54443-507-11 | 94756 | BOEING COMPANY, THEDBA BOEING |
| 54443-507-11 | 9U449 | LOVERIDGE MACHINE & TOOL, INC.DBA LOVERIDGE MACHINE COMPANY |
Technical Data | NSN 5310-00-124-9825
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNEF |
| NOMINAL THREAD SIZE | 1.500 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | ROUND |
| DRIVE POINT DEPTH | 0.190 INCHES NOMINAL |
| NUT DIAMETER | 2.020 INCHES NOMINAL |
| NUT THICKNESS | 0.375 INCHES NOMINAL |
| DRIVE POINT DIAMETER | 0.094 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 6 |
| NUCLEAR HARDNESS CRITICAL FEATURE | HARDENED |
| SPECIAL FEATURES | DESIGN ANALYSIS; NUCLEAR HARDNESS CRITICAL |
