NSN 5310-00-125-3937
Part Details | KEY WASHER
5310-00-125-3937 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: NK7402, NK7402, NK7402, NK7402, 5310-00-125-3937, 00-125-3937, 5310001253937, 001253937
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 24, 1972 | 00-125-3937 | 01869 ( WASHER, KEY ) |

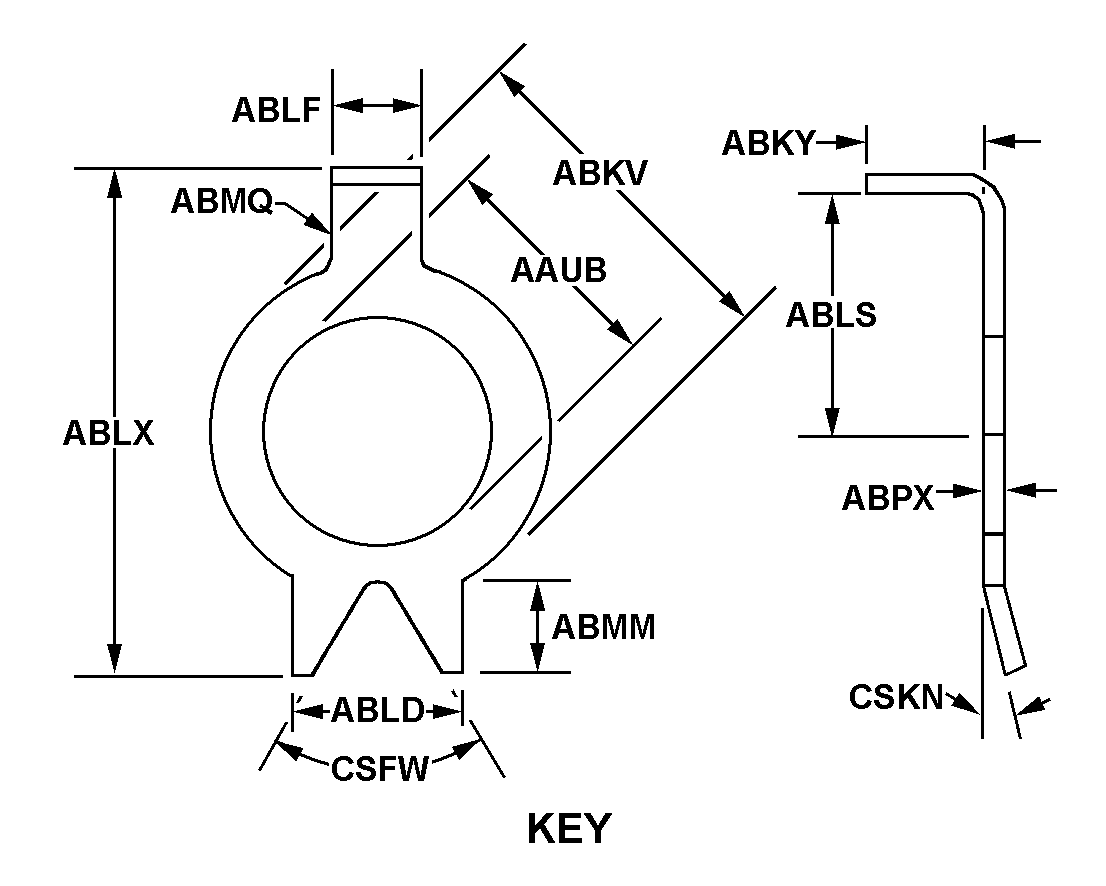

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5310-00-125-3937
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NK7402 | U0J60 | ONTIC ENGINEERING & MANUFACTURING UKLIMITED |
| NK7402 | 45934 | ONTIC ENGINEERING AND MANUFACTURING,INC. |
| NK7402 | K4358 | SAFRAN ELECTRICAL & POWER UK LTD |
| NK7402 | 27541 | TRANSAERO, INC. |
Technical Data | NSN 5310-00-125-3937
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY |
| EXTERNAL KEY QUANTITY | 1 |
| HOLE DIAMETER | 0.266 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.445 INCHES NOMINAL |
| EXTERNAL PREBENT KEY LENGTH | 0.094 INCHES NOMINAL |
| EXTERNAL TAPERED KEY WIDTH | 0.250 INCHES NOMINAL |
| EXTERNAL PREBENT KEY WIDTH | 0.116 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY | 0.281 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 0.665 INCHES NOMINAL |
| SPLIT KEY LENGTH | 0.172 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| ANGLE BETWEEN EXTERNAL KEYS | 45.0 DEGREES NOMINAL |
| EXTERNAL PREBENT KEY ANGLE | 15.0 DEGREES NOMINAL |
