NSN 5310-00-126-5365
Part Details | PLATE SELF-LOCKING NUT
5310-00-126-5365 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: 70466820, 70466-820, A15DS2031, A15DS203-1, A15DS2031, A15DS203-1, 5310-00-126-5365, 00-126-5365, 5310001265365, 001265365
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 20, 1968 | 00-126-5365 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

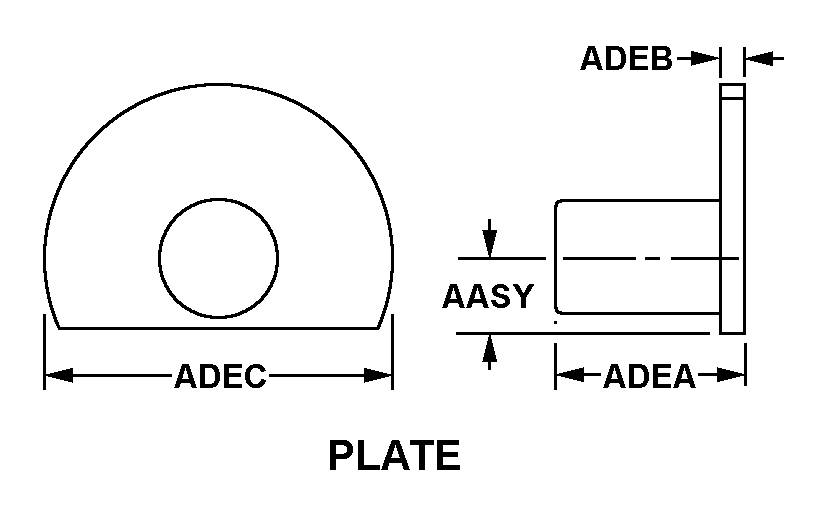

REFERENCE DRAWINGS & PICTURES
PLATE
2 HOLES
Cross Reference | NSN 5310-00-126-5365
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70466-820 | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
| A15DS203-1 | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
| A15DS203-1 | 77272 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 5310-00-126-5365
| Characteristic | Specifications |
|---|---|
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLATE |
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| DISTANCE FROM CENTERLINE TO FLAT | 0.875 INCHES NOMINAL |
| NUT HEIGHT | 0.544 INCHES NOMINAL |
| PLATE THICKNESS | 0.268 INCHES NOMINAL |
| PLATE WIDTH | 1.500 INCHES NOMINAL |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | 5 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.375 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.562 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 0.875 INCHES NOMINAL |
