NSN 5310-00-127-0157
Part Details | CLINCH SELF-LOCKING NUT
5310-00-127-0157 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Alternate Parts: 5436K74006, 5436K74-006, LK2562, LK256-2, LK2562EF, LK-256-2EF, 5310-00-127-0157, 00-127-0157, 5310001270157, 001270157
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 27, 1968 | 00-127-0157 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

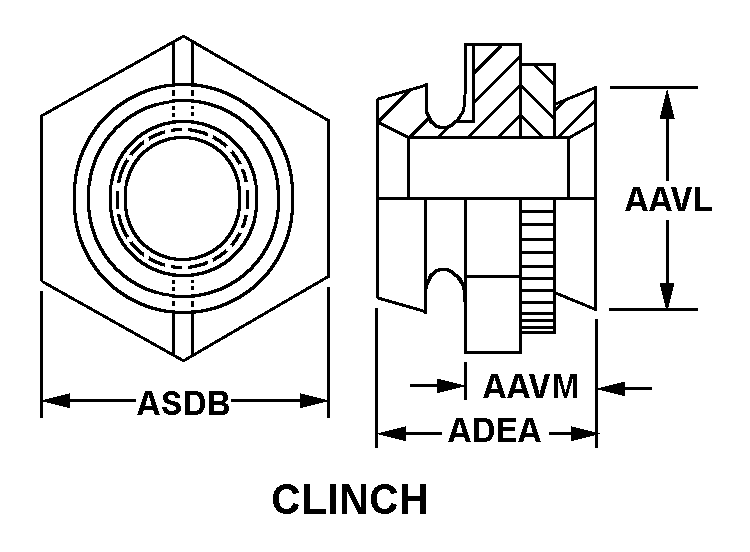

REFERENCE DRAWINGS & PICTURES
CLINCH
Cross Reference | NSN 5310-00-127-0157
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5436K74-006 | 97424 | AMETEK INC.DBA AMETEK AEROSPACE & DEFENSE |
| LK256-2 | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
| LK-256-2EF | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
Technical Data | NSN 5310-00-127-0157
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | CLINCH |
| PILOT DIAMETER | 0.166 INCHES MINIMUM AND 0.171 INCHES MAXIMUM |
| PILOT LENGTH | 0.054 INCHES MAXIMUM |
| NUT HEIGHT | 0.179 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.219 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
