NSN 5310-00-127-5426
Part Details | KEY WASHER
5310-00-127-5426 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: JH2116, JH211-6, JH2116, JH211-6, 5310-00-127-5426, 00-127-5426, 5310001275426, 001275426
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-127-5426 | 01869 ( WASHER, KEY ) |

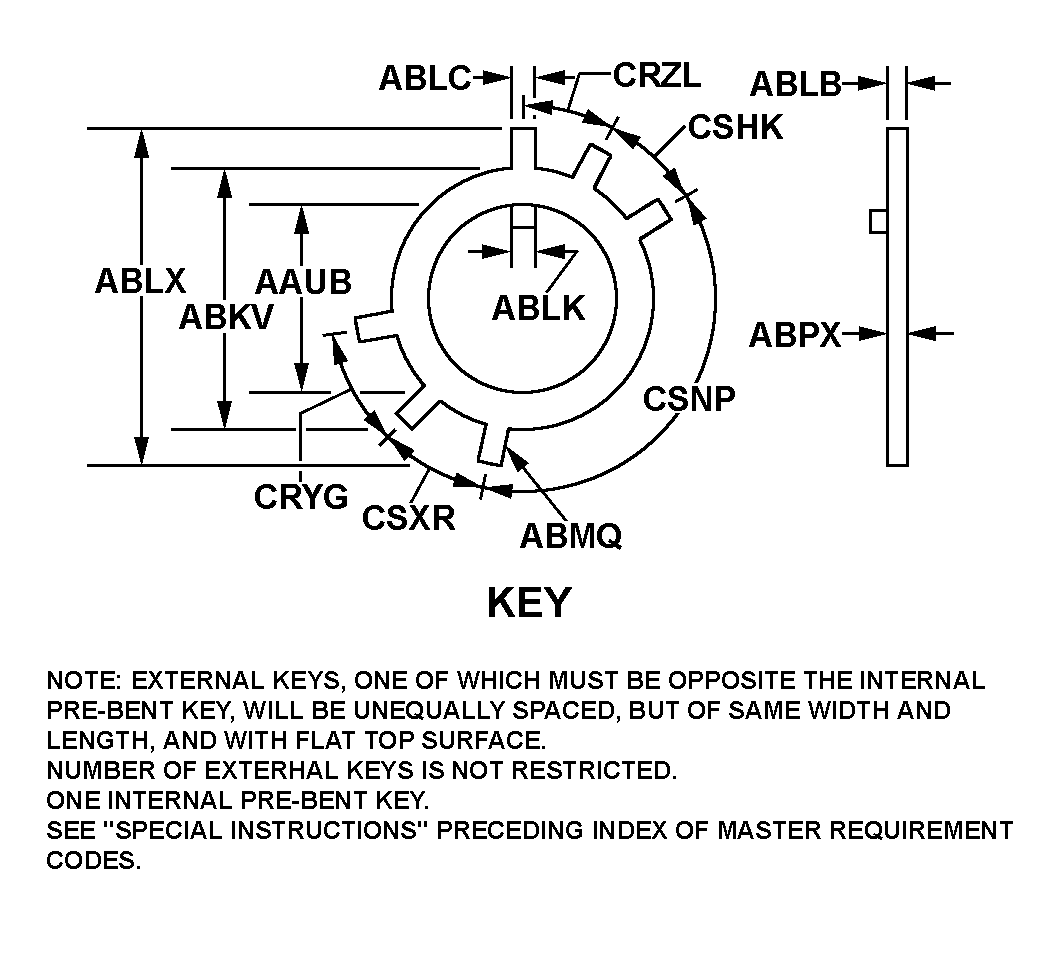

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5310-00-127-5426
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| JH211-6 | 31435 | LUCAS AEROSPACE POWER EQUIPMENTCORPORATION |
| JH211-6 | 3CPE0 | SAFRAN POWER USA, LLC |
Technical Data | NSN 5310-00-127-5426
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY |
| EXTERNAL KEY QUANTITY | 6 |
| HOLE DIAMETER | 1.193 INCHES MINIMUM AND 1.213 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.500 INCHES MINIMUM AND 1.515 INCHES MAXIMUM |
| INTERNAL PREBENT KEY LENGTH | 0.094 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| EXTERNAL STRAIGHT KEY WIDTH | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| INTERNAL PREBENT KEY WIDTH | 0.156 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| OVERALL DISTANCE INCLUDING KEYS | 1.922 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |
| ANGLE BETWEEN FIFTH AND SIXTH KEY | 120.0 DEGREES NOMINAL |
| ANGLE BETWEEN FIRST AND SECOND KEY | 30.0 DEGREES NOMINAL |
| ANGLE BETWEEN SECOND AND THIRD KEY | 30.0 DEGREES NOMINAL |
| ANGLE BETWEEN FOURTH AND FIFTH KEY | 30.0 DEGREES NOMINAL |
