NSN 5310-00-130-8821
Part Details | KEY WASHER
5310-00-130-8821 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: GTS342, GTS34-2, 5310-00-130-8821, 00-130-8821, 5310001308821, 001308821
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 06, 1968 | 00-130-8821 | 01869 ( WASHER, KEY ) |

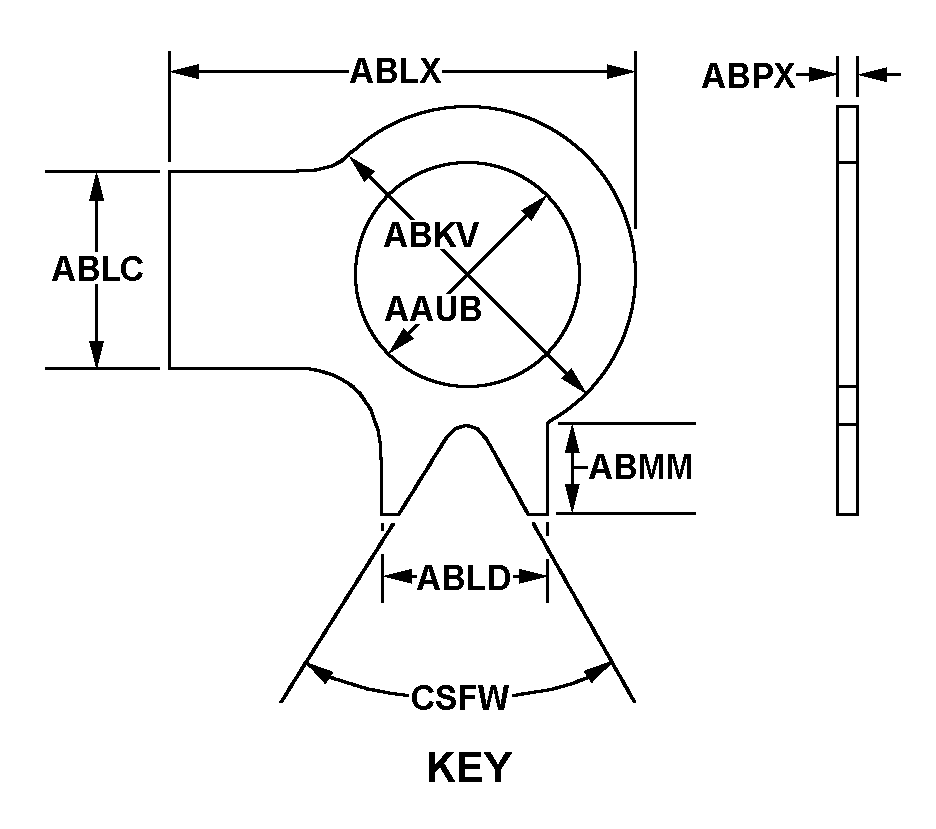

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5310-00-130-8821
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GTS34-2 | K0131 | GOODRICH LIMITEDDBA GOODRICH CONTROL SYSTEMS |
Technical Data | NSN 5310-00-130-8821
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY |
| OUTSIDE DIAMETER | 0.340 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| EXTERNAL STRAIGHT KEY WIDTH | 0.100 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| EXTERNAL TAPERED KEY WIDTH | 0.187 INCHES MINIMUM AND 0.197 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.018 INCHES NOMINAL |
| ANGLE BETWEEN EXTERNAL KEYS | 58.0 DEGREES MINIMUM AND 62.0 DEGREES MAXIMUM |
