NSN 5310-00-130-8893
Part Details | BLIND RIVET SELF-LOCKING NUT
5310-00-130-8893 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: 79CBD77, 79CBD7-7, 79CBD77, 79CBD7-7, C8587207, C858-720-7, 650107207, 65010-720-7, C8587207, C858-720-7, 5310-00-130-8893, 00-130-8893, 5310001308893, 001308893
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 06, 1968 | 00-130-8893 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |
REFERENCE DRAWINGS & PICTURES

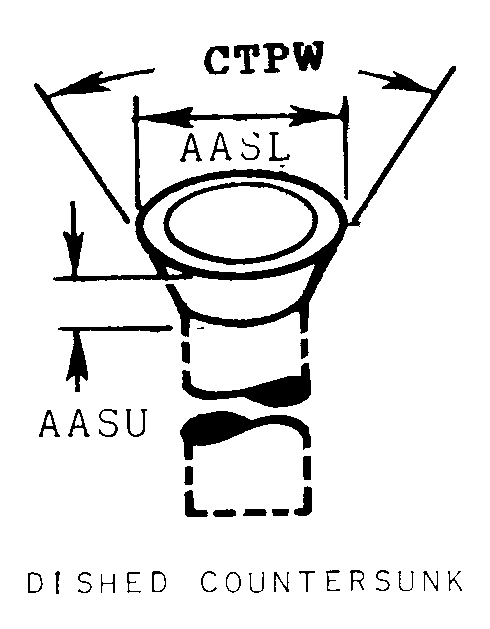

DISHED COUNTERSUNK
BLIND RIVET W/SMOOTH ROUND SHANK
Cross Reference | NSN 5310-00-130-8893
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 79CBD7-7 | 019L2 | FITZ AEROSPACE, LLCDBA ESNA |
| 79CBD7-7 | 72962 | HARVARD INDUSTRIES INC |
| C858-720-7 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| 65010-720-7 | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
| C858-720-7 | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
Technical Data | NSN 5310-00-130-8893
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.537 INCHES MINIMUM AND 0.539 INCHES MAXIMUM |
| NUT LENGTH | 1.156 INCHES MINIMUM AND 1.186 INCHES MAXIMUM |
| NUT GRIP RANGE | +0.400 TO +0.460 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| HEAD STYLE | DISHED COUNTERSUNK |
| HEAD DIAMETER | 0.704 INCHES MINIMUM AND 0.708 INCHES MAXIMUM |
| HEAD HEIGHT | 0.108 INCHES NOMINAL |
| HEAD COUNTERSINK ANGLE | 76.00 DEGREES NOMINAL |
| SHANK END TYPE | CLOSED |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
