NSN 5310-00-132-7821
Part Details | FINISHING WASHER
5310-00-132-7821 A washer or cone or disk shape with a centrally located hole, designed to accommodate a flat or oval head screw and provide additional bearing area on the material being fastened. It may or may not have a flush flange feature.
Alternate Parts: 2060305071, 206-030-507-1, 5310-00-132-7821, 00-132-7821, 5310001327821, 001327821
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 18, 1968 | 00-132-7821 | 15932 ( WASHER, FINISHING ) |

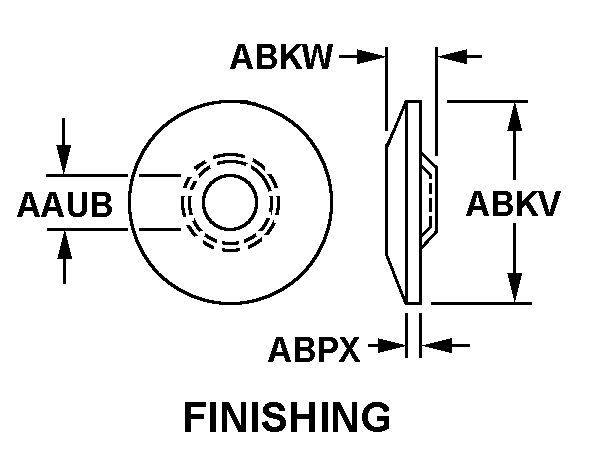

REFERENCE DRAWINGS & PICTURES
FINISHING
Cross Reference | NSN 5310-00-132-7821
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206-030-507-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
Technical Data | NSN 5310-00-132-7821
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FINISHING |
| HOLE DIAMETER | 0.765 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.051 INCHES NOMINAL |
| SPECIAL FEATURES | ID IS TAPERED |
| HEAT TREATMENT | NORMALIZED |
