NSN 5310-00-134-3926
Part Details | CLIP-ON NUT
5310-00-134-3926 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.
Alternate Parts: A673243, A6732-4-3, A673243, A6732-4-3, 11727730, A6732402, A6732-4-02, 5310-00-134-3926, 00-134-3926, 5310001343926, 001343926
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 24, 1969 | 00-134-3926 | 35871 ( NUT, CLIP-ON ) |

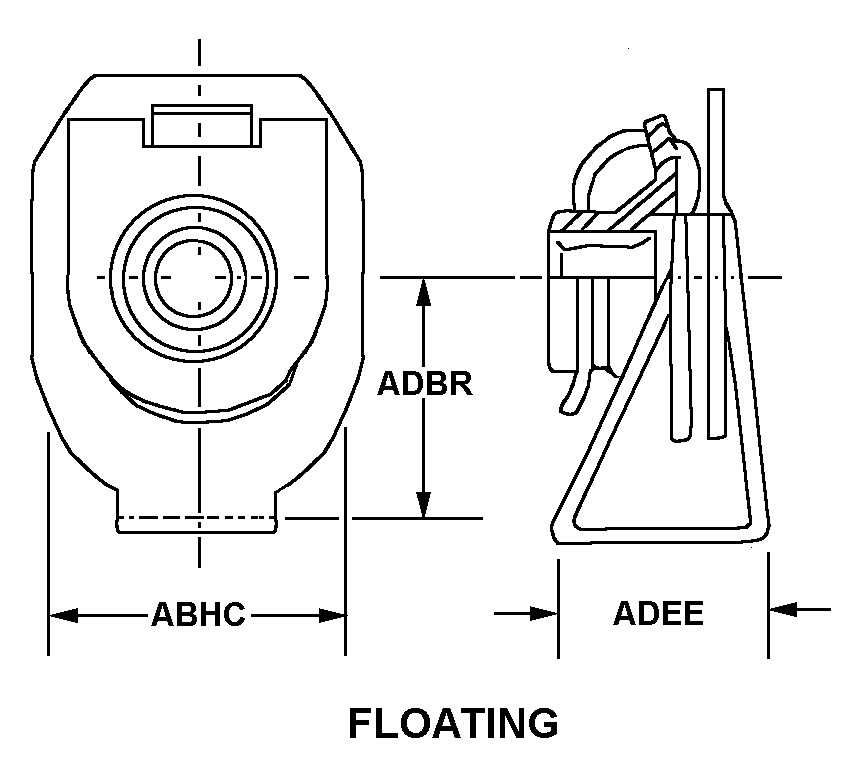

REFERENCE DRAWINGS & PICTURES
FLOATING
Cross Reference | NSN 5310-00-134-3926
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A6732-4-3 | 72962 | HARVARD INDUSTRIES INC |
| A6732-4-3 | 80539 | SPS TECHNOLOGIES, LLCDBA AEROSPACE FASTENERS GROUP |
| 11727730 | 19200 | US ARMY ARDEC RDECOM |
| A6732-4-02 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5310-00-134-3926
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | FLOATING |
| OVERALL WIDTH | 0.500 INCHES MAXIMUM |
| DISTANCE FROM BASE TO CENTER OF APERTURE | 0.255 INCHES MINIMUM AND 0.275 INCHES MAXIMUM |
| PANEL THICKNESS | 0.219 INCHES MINIMUM AND 0.239 INCHES MAXIMUM |
