NSN 5310-00-138-0414
Part Details | SHEET SPRING NUT
5310-00-138-0414 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: 920313, 70920313, 5310-00-138-0414, 00-138-0414, 5310001380414, 001380414
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 23, 1971 | 00-138-0414 | 01865 ( NUT, SHEET SPRING ) |

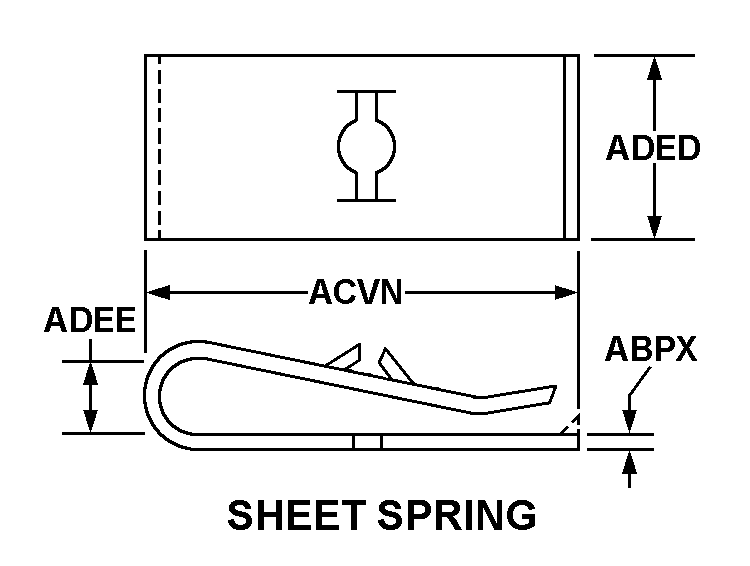

REFERENCE DRAWINGS & PICTURES
SHEET SPRING
Cross Reference | NSN 5310-00-138-0414
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 920313 | 0AHU0 | KALMAR AC INC |
| 70920313 | 0AHU0 | KALMAR AC INC |
Technical Data | NSN 5310-00-138-0414
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.266 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| NUT LENGTH | 1.100 INCHES NOMINAL |
| NUT WIDTH | 0.628 INCHES NOMINAL |
| PANEL THICKNESS | 0.094 INCHES NOMINAL |
