NSN 5310-00-138-9523
Part Details | KEY WASHER
5310-00-138-9523 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: 6823432, 6823432, 6823432, 5310-00-138-9523, 00-138-9523, 5310001389523, 001389523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 09, 1971 | 00-138-9523 | 01869 ( WASHER, KEY ) |
REFERENCE DRAWINGS & PICTURES

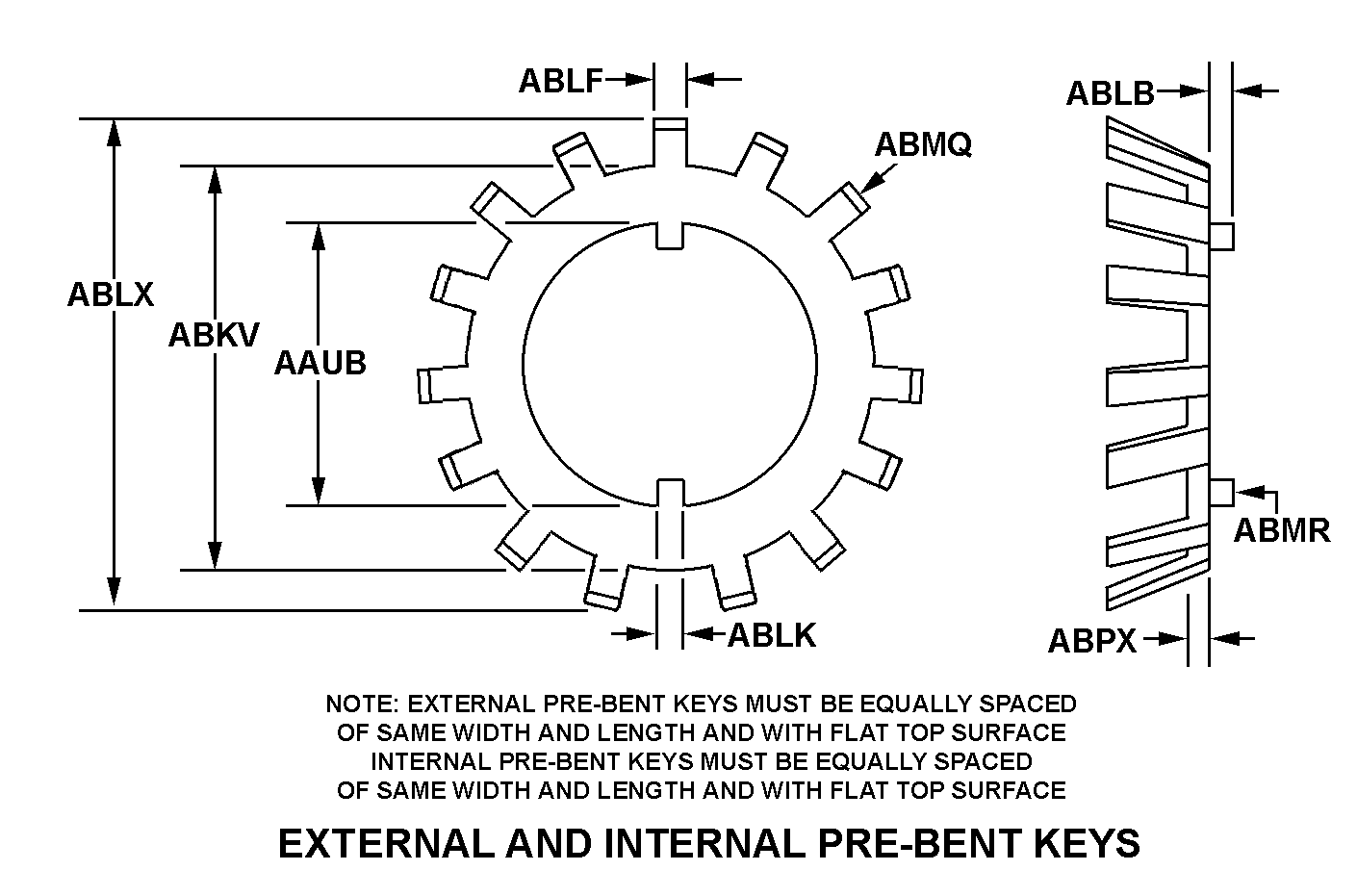

EXTERNAL AND INTERNAL PRE-BENT KEYS
Cross Reference | NSN 5310-00-138-9523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6823432 | 73342 | ALLISON TRANSMISSION, INC. |
| 6823432 | 00518 | C. F. ROARK WELDING & ENGINEERINGCOMPANY, INCORPORATED |
| 6823432 | 63005 | ROLLS-ROYCE CORPORATION |
Technical Data | NSN 5310-00-138-9523
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | EXTERNAL AND INTERNAL PRE-BENT KEYS |
| EXTERNAL KEY QUANTITY | 7 |
| INTERNAL KEY QUANTITY | 2 |
| HOLE DIAMETER | 1.598 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.951 INCHES NOMINAL |
| INTERNAL PREBENT KEY LENGTH | 0.156 INCHES NOMINAL |
| EXTERNAL PREBENT KEY WIDTH | 0.417 INCHES NOMINAL |
| INTERNAL PREBENT KEY WIDTH | 0.192 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 2.234 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.038 INCHES NOMINAL |
