NSN 5310-00-139-4622
Part Details | ASSEMBLED WASHER SELF-LOCKING NUT
5310-00-139-4622 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: 5310001394622, 08434, 11643347, 5310-00-139-4622, 00-139-4622, 5310001394622, 001394622
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 01, 1971 | 00-139-4622 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |
REFERENCE DRAWINGS & PICTURES

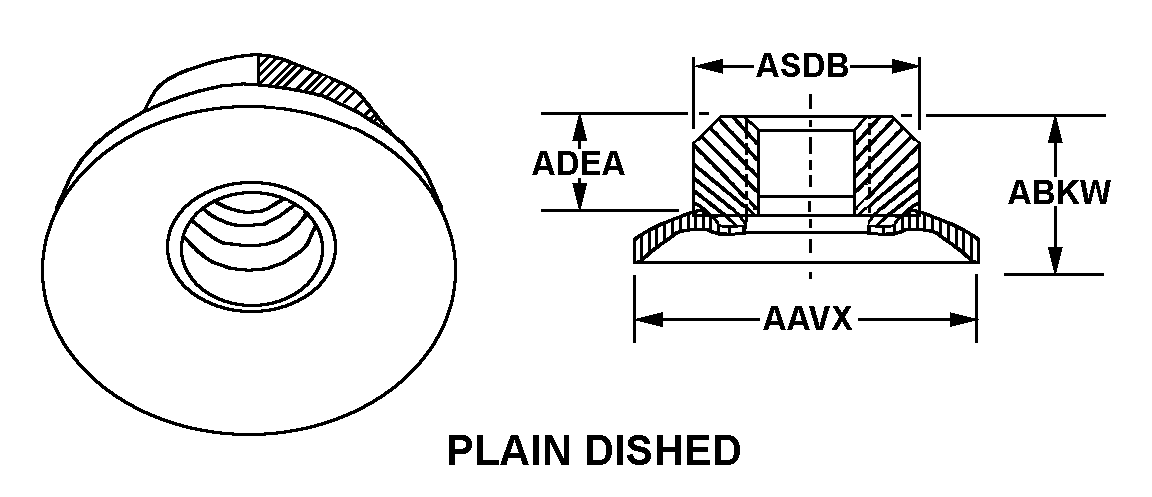

PLAIN DISHED
Cross Reference | NSN 5310-00-139-4622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310001394622 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 08434 | 41885 | HAYES WHEELS INTL INCAKRON OPNS |
| 11643347 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5310-00-139-4622
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN DISHED |
| WASHER OUTSIDE DIAMETER | 1.690 INCHES NOMINAL |
| OVERALL HEIGHT | 1.120 INCHES NOMINAL |
| NUT HEIGHT | 1.120 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.190 INCHES NOMINAL |
| LOCKING FEATURE | FREE-RUNNING ALL METAL DESIGN |
