NSN 5310-00-139-7422
Part Details | CLINCH SELF-LOCKING NUT
5310-00-139-7422 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Alternate Parts: 54G32928, 54G3292-8, 79NKCFM202, 79NKCFM2-02, 79NKCFM202, 79NKCFM2-02, 4177121, 417712-1, 002003716020, 002-003716-020, 5310-00-139-7422, 00-139-7422, 5310001397422, 001397422
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 01, 1971 | 00-139-7422 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |
REFERENCE DRAWINGS & PICTURES

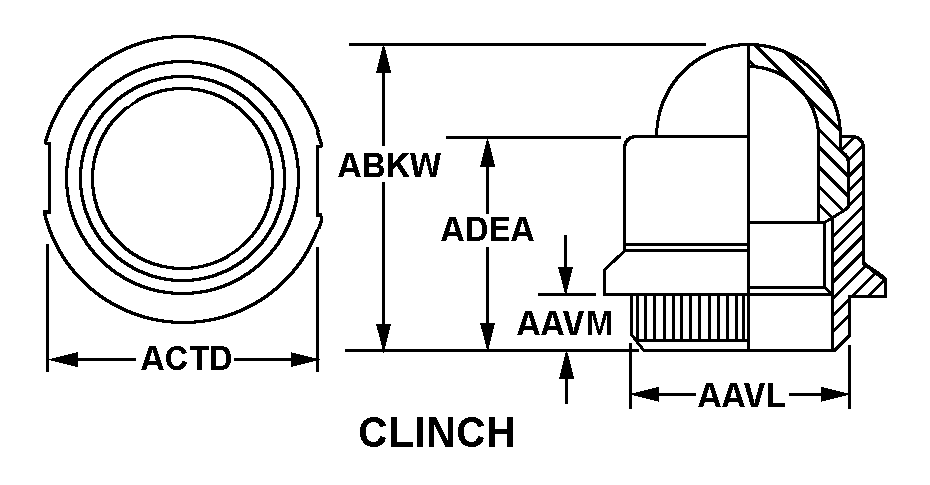

CLINCH
Cross Reference | NSN 5310-00-139-7422
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 54G3292-8 | 20284 | AIMTRON SYSTEMS LLCDBA TARGET |
| 79NKCFM2-02 | 019L2 | FITZ AEROSPACE, LLCDBA ESNA |
| 79NKCFM2-02 | 72962 | HARVARD INDUSTRIES INC |
| 417712-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 002-003716-020 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MULTIPLE |
Technical Data | NSN 5310-00-139-7422
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | CLINCH |
| PILOT DIAMETER | 0.252 INCHES MINIMUM AND 0.256 INCHES MAXIMUM |
| PILOT LENGTH | 0.057 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.350 INCHES NOMINAL |
| NUT DIAMETER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| NUT HEIGHT | 0.226 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| TEMP RATING | 350.0 DEG FAHRENHEIT NOMINAL |
