NSN 5310-00-141-1568
Part Details | EYE NUT
5310-00-141-1568 A combination eye and nut, formed in one piece, and when fitted to an externally threaded object, the eye is used as an attaching medium.
Alternate Parts: 7511, 6511, 340, 5310-00-141-1568, 00-141-1568, 5310001411568, 001411568
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-141-1568 | 15897 ( NUT, EYE ) |

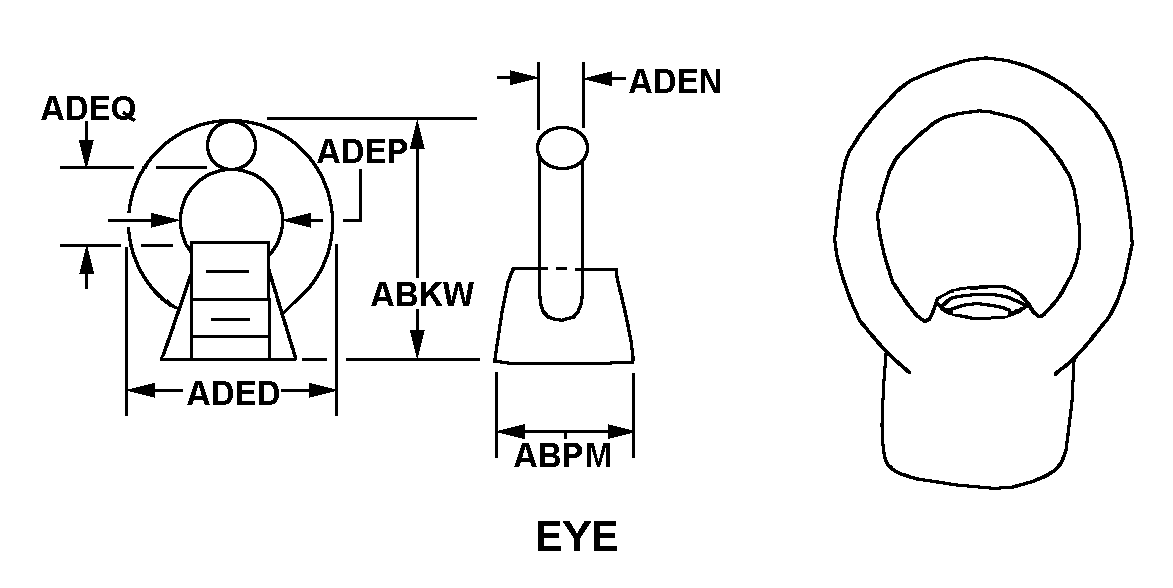

REFERENCE DRAWINGS & PICTURES
EYE
Cross Reference | NSN 5310-00-141-1568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7511 | 20117 | HUBBARD AND COMPANY |
| 6511 | 73569 | LA CHANCE LTD |
| 340 | 73569 | LA CHANCE LTD |
Technical Data | NSN 5310-00-141-1568
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD PITCH DIAMETERS | +0.4500 TO +0.4597 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | EYE |
| OVERALL HEIGHT | 2.120 INCHES NOMINAL |
| BODY DIAMETER | 0.875 INCHES NOMINAL |
| NUT WIDTH | 0.875 INCHES NOMINAL |
| EYE BODY THICKNESS | 0.062 INCHES NOMINAL |
| HOLE WIDTH | 0.078 INCHES NOMINAL |
| HOLE HEIGHT | 0.031 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
| SPECIAL FEATURES | GROOVED FOR WIRE STRAND W/ONE GROOVE 0.875 IN. BY 1.500 IN. INSIDE DIMENSIONS |
