NSN 5310-00-141-1752
Part Details | WING PLAIN NUT
5310-00-141-1752 A nut having wings designed for manual turning without driver or wrench.
Alternate Parts: U629, 5310H34017, 5310H34-017, 5310-00-141-1752, 00-141-1752, 5310001411752, 001411752
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-141-1752 | 01862 ( NUT, PLAIN, WING ) |

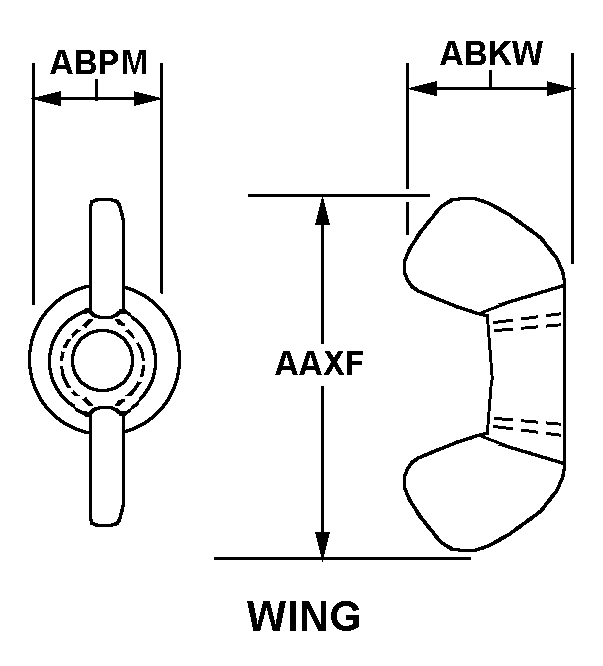

REFERENCE DRAWINGS & PICTURES
WING
Cross Reference | NSN 5310-00-141-1752
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U629 | 78943 | TRIUMPH THERMAL SYSTEMS, INC. |
| 5310H34-017 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5310-00-141-1752
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | WING |
| WING SPREAD WIDTH | 1.312 INCHES NOMINAL |
| OVERALL HEIGHT | 0.688 INCHES NOMINAL |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
