NSN 5310-00-141-1813
Part Details | CLINCH PLAIN NUT
5310-00-141-1813 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole.
Alternate Parts: F522202, F52-220-2, HC861H380440, HC861H38-0440, 7483709P2, 7483709P2, 40P41, 40P4-1, 70382145PC1, 7038-2145PC1, 88583364, 8858336-4, 838344PC1, 8383441, 838344-1, 12Z50054, 12Z5005-4, 70382145PC1, 7038-2145PC1, 80086103, 80086-103, CL44010, CL440-10, CL4401C, CL440-1C, CL4401, CL440-1, 40P41, 40P4-1, 88583364, 8858336-4, 3340552000, 334-0552-000, 3340062000, 334-0062-000, 3340552000, 334-0552-000, 3340062000, 334-0062-000, 5310-00-141-1813, 00-141-1813, 5310001411813, 001411813
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-141-1813 | 01860 ( NUT, PLAIN, CLINCH ) |

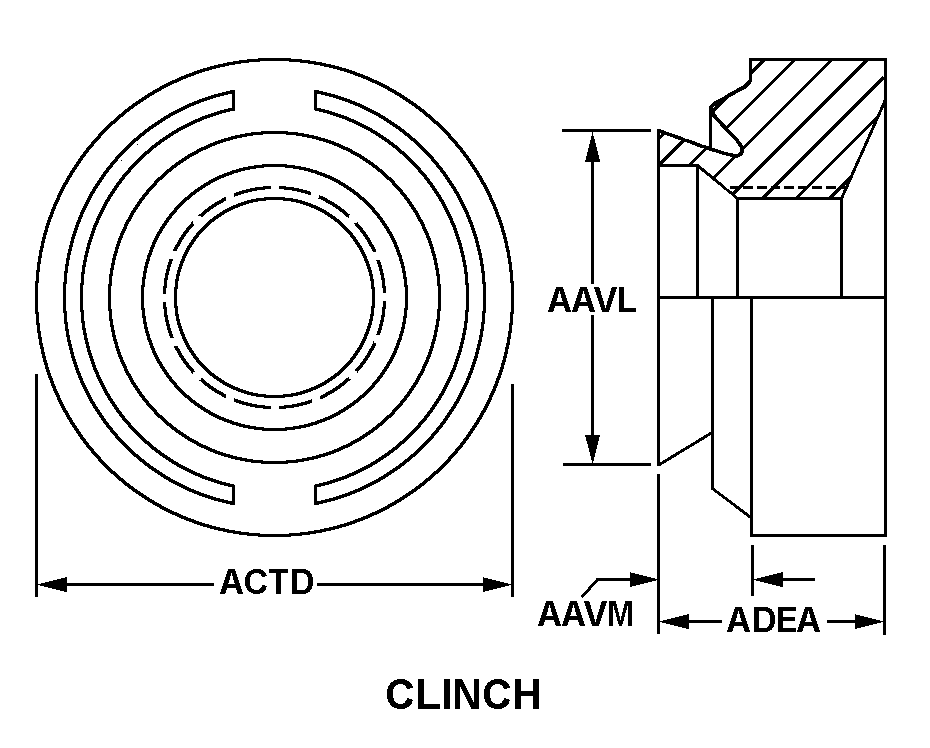

REFERENCE DRAWINGS & PICTURES
CLINCH
Cross Reference | NSN 5310-00-141-1813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F52-220-2 | 72314 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION I |
| HC861H38-0440 | 94931 | BENDIX CORP THE BENDIX INTERNATIONALDIV |
| 7483709P2 | 24454 | GENERAL ELECTRIC COELECTRONIC COMPONENTS DIVISION OF |
| 7483709P2 | 24446 | GENERAL ELECTRIC COMPANY |
| 40P4-1 | 52983 | HEWLETT-PACKARD CO WALTHAM DIV |
| 7038-2145PC1 | C1834 | KONTRON AG |
| 8858336-4 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 838344PC1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 838344-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 12Z5005-4 | 94135 | NAVAL ORDNANCE STANDARDS |
| 7038-2145PC1 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 80086-103 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
| CL440-10 | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
| CL440-1C | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
| CL440-1 | 46384 | PENN ENGINEERING & MANUFACTURINGCORP. |
| 40P4-1 | 0ZBJ4 | PHILIPS ELECTRONICS NORTH AMERICACORPORATION |
| 8858336-4 | 21921 | RCA CORPDISTRIBUTOR AND SPECIAL PRODUCTS DIV |
| 334-0552-000 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 334-0062-000 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 334-0552-000 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
| 334-0062-000 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
Technical Data | NSN 5310-00-141-1813
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | CLINCH |
| PILOT DIAMETER | 0.165 INCHES MAXIMUM |
| PILOT LENGTH | 0.038 INCHES MAXIMUM |
| NUT DIAMETER | 0.250 INCHES NOMINAL |
| NUT HEIGHT | 0.100 INCHES NOMINAL |
