NSN 5310-00-141-1835
Part Details | SHEET SPRING NUT
5310-00-141-1835 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: A616210Z3, A6162-10Z3, 5310-00-141-1835, 00-141-1835, 5310001411835, 001411835
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-141-1835 | 01865 ( NUT, SHEET SPRING ) |
REFERENCE DRAWINGS & PICTURES

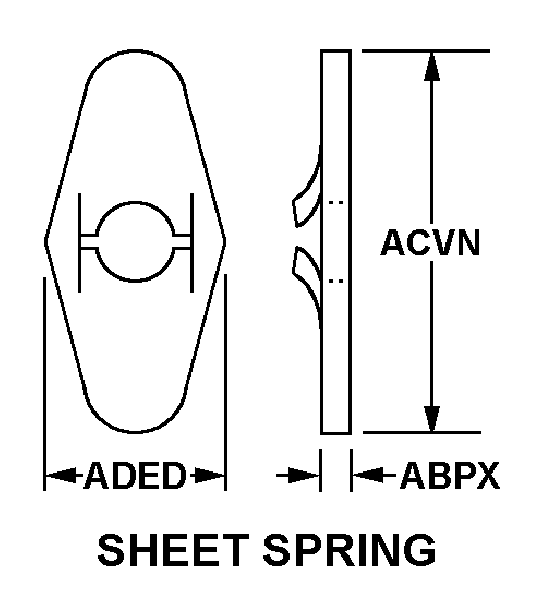

SHEET SPRING
2 HOLES
Cross Reference | NSN 5310-00-141-1835
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A6162-10Z3 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
Technical Data | NSN 5310-00-141-1835
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.190 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| NUT LENGTH | 0.968 INCHES NOMINAL |
| NUT WIDTH | 0.468 INCHES NOMINAL |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | 8 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.094 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.688 INCHES NOMINAL |
